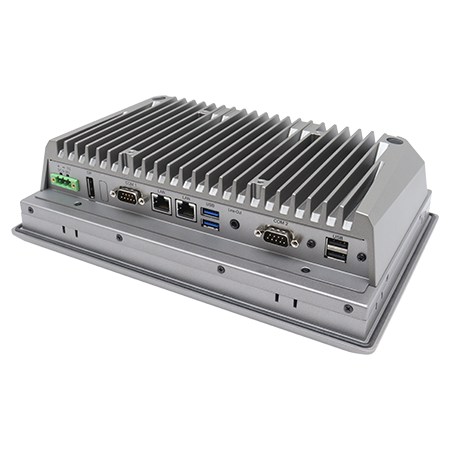

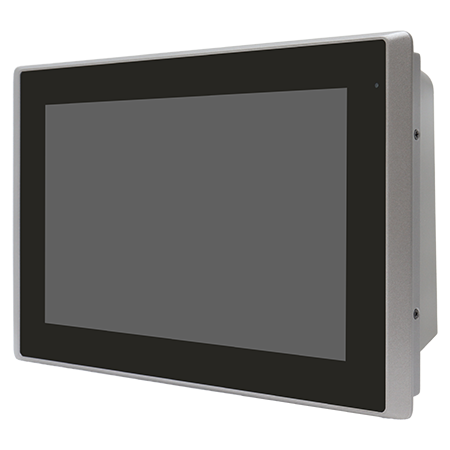

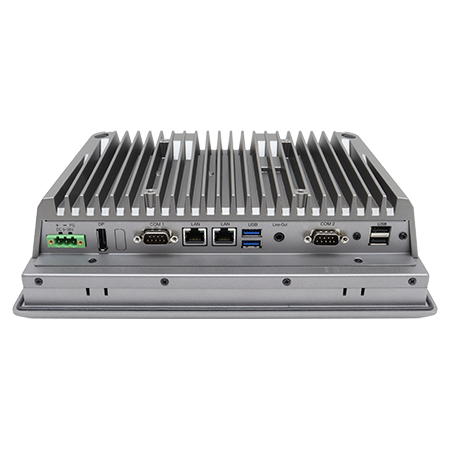

Its fanless design offers 24/7 reliability, from low power Intel® Celeron to the 8th Core i3/i5 CPU.The projected capacitive touch screen with pure flat, multi-touch support, anti-scratching, Wi-Fi, Dual LAN, Serial and USB functionality.
|
LCD Size |
10.1" TFT-LCD |
|
Touch Type |
Projected Capacitive |
|
Luminance(cd/m²) |
Standard: 350 |
|
BIOS |
AMI |
|
CPU |
Intel Celeron J6412 Quad Core Processor |
|
Power Consumption |
ARCHMI-S-810BP/R: 28W (Max) |
|
System Chipset |
SoC |
|
System Memory |
1 x DDR4 3200MHz SO-DIMM, up to 32GB |
|
TPM |
Onboard TPM2.0 SPI I/F TPM IC |
|
Audio |
1 x Line-out |
|
DP |
1 x DisplayPort 1.4: Up to 4096 x 2160@60Hz |
|
LAN |
1 x RJ45 Type Intel I210AT 1GbE LAN |
|
Wake on LAN |
Support WOL |
|
Power |
1 x Terminal Block Type |
|
Serial / Parallel |
1 x DB9 RS-232/422/485 (COM1, BIOS selection) |
|
USB |
2 x USB 3.2 Type A |
|
Watchdog Timer |
1~255 sec (system) |
|
HDD/SSD |
1 x M.2 B-Key 2242/2280 for SSD (SATA3) |
|
Expansion Slot |
1 x Mini-PCIe slot (full size, PCIe3.0 x1, USB2.0), with 1 x micro SIM slot |
|
Backlight lifetime (hrs) |
Standard: 30,000 |
|
Contrast |
Standard: 800:1 |
|
Max. color |
16.7M |
|
Max. resolution |
1280 x 800 |
|
Viewing Angle (H°/V°) |
Standard: 170 / 170 |
|
Construction |
Aluminum Die-casting Chassis |
|
Dimension(mm) |
285 x 189 x 75 mm |
|
IP rating |
IP66 Compliant Front Bezel |
|
Mounting |
Panel Mount, VESA 75 x 75 |
|
Net weight (Kgs) |
2.7 kg |
|
Certification |
CE/FCC class A |
|
Operating Temperature (°C) |
-20~60˚C |
|
Storage Humidity |
10 to 95% @ 40˚C, non-condensing |
|
Storage Temperature (°C) |
-30~70˚C |
Download PDF & DWG
