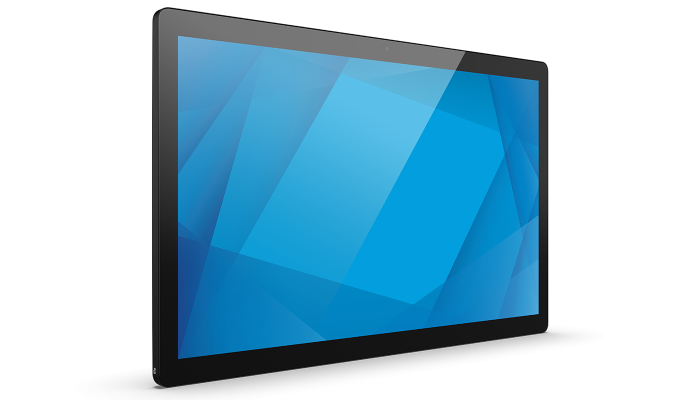

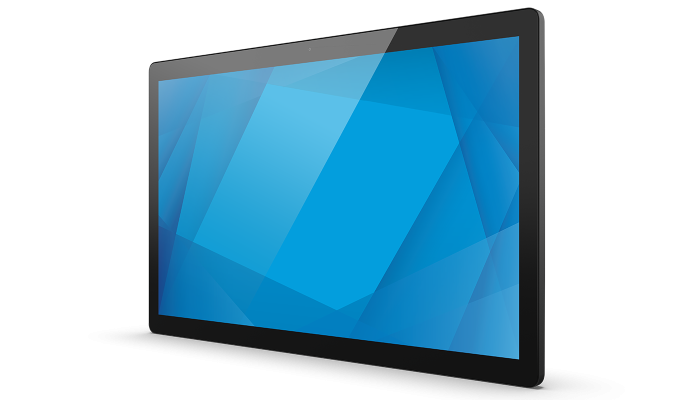

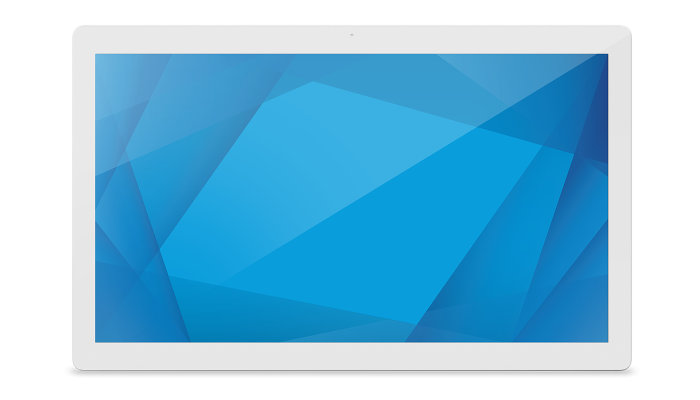

One of our most popular product lines ever, the I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management. Available in 10-, 15- and 22-inch sizes, Elo’s I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display, Linux Debian 10 OS and enhanced CPU performance a Rockchip processor.
With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.
|
Part Number |
E143391 |
|
Enclosure Color |
Black |
|
Touch Technology & Capacity |
PCAP (TouchPro® Projected Capacitive) - 10 Touch |
|
Touch Thru |
Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches |
|
Processor |
Rockchip RK3399 |
|
Memory (RAM) |
4GB |
|
Storage |
32GB |
|
OS |
Linux Debian 10 |
|
Diagonal Size |
21.5'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
16:9 |
|
Active Area |
18.74" x 10.54" / 476 mm x 268 mm |
|
Resolution |
1920 x 1080 @ 60Hz |
|
Number of Colors |
8-bit (16.7 million) |
|
Brightness |
LCD Panel: 250 nits |
|
Response Time-total (typical) |
5 msec |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
|
Peripheral Mounting |
4x micro-USB 2.0 Elo Edge Connect ports |
|
I/O Ports |
1x USB 3.0 support (900mA) |
|
Resolution |
1920 x 1080 @ 60Hz |
|
Webcam |
5MP, Max Resolution: 1920x1080 30fps, Auto Focus |
|
Wireless |
802.11a/b/g/n/ac + Bluetooth 5.0 |
|
Audio Ports |
1x built-in Analog Microphone |
|
Speakers |
2x 2W |
|
Power Supply |
AC input voltage: 100-240 VAC |
|
Power Consumption (Typical) |
On: 14.49W |
|
Power Over Ethernet (PoE) |
Supported via Elo PoE Device PN: E413396 |
|
Dimensions |
20.66" x 12.79" x 1.17" / 524.8 mm x 324.8 mm x 29.7 mm |
|
Shipping Box Dimensions |
23.6" x 6.6" x 16.0" / 600 mm x 168 mm x 406 mm |
|
Weight (Unpackaged) |
9.5 lbs / 4.3 kg |
|
Weight (Packaged) |
16.1 lbs / 7.3 kg |
|
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
|
Storage Temperature |
-20°C to 50°C / -4°F to 122°F |
|
Humidity |
Operating: 20% to 80% |
|
Regulatory approvals and declarations |
UL/cUL (US) |
|
MTBF |
50,000 hours demonstrated |
|

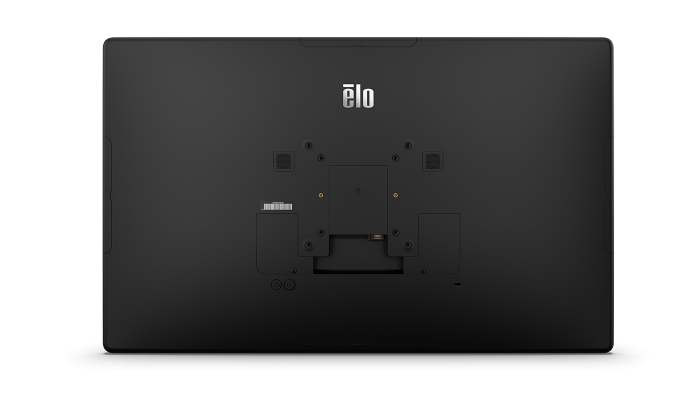

Mounting Options |
VESA 75mm and 100mm |
|
Warranty |
2 years |
|
Extended Service Options |
3 year Warranty Coverage – Elo P/N: E819394 |
|
Sealability |
Touchscreen sealed to LCD |
|
What's in the Box |
I-Series 4 |
