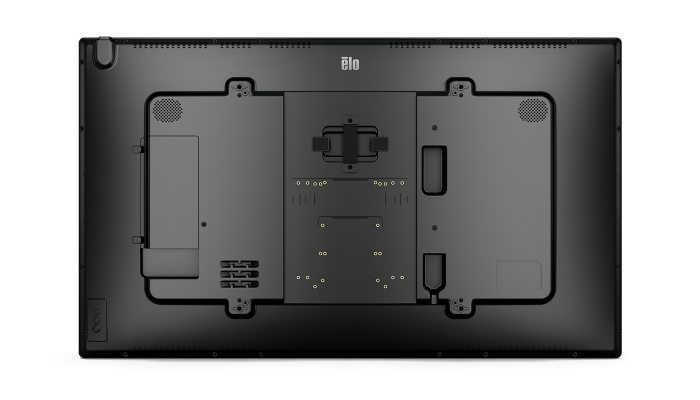

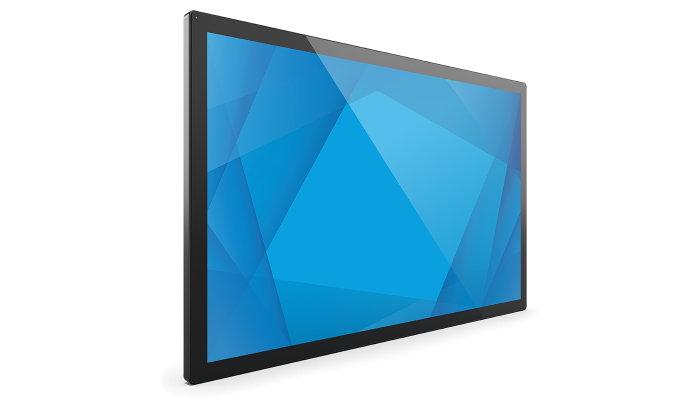

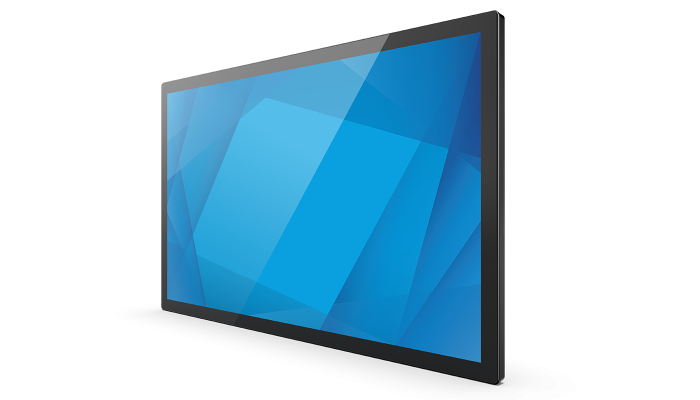

4304L 43″ Interactive Display

TouchPro PCAP (clear with anti-friction) - E103351

Black

PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability

Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm

USB-C

42.5'' diagonal, Active matrix TFT LCD (LED)

37.04" x 20.84" / 940.9 mm x 529.3 mm

16:9

1920 x 1080 @ 50, 60Hz

640 x 480 @ 60Hz
800 x 600 @ 56/60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 60Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1920 x 1080 @ 50/60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

8-bit (16.7 million)

LCD Panel: 500 nits
PCAP: 430 nits

8 msec

4000:1

Elo Backpack 4
Intel NUC with 100 mm x 100 mm VESA mounting plate
BrightSign XT/XD/XC/HD Series Player

EloView: Elo Cloud control supported
Crestron: Crestron Connected V2 supported.

Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range
Audio Settings: Audio Output, Mute, Volume selection
Information: Monitor, Temperature, IoT Network status, IoT Error Message, Help and Support
Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options, HDMI CEC
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Through, Tabletop
Configuration: Source Port Lock (Will sync to EloView when connected), FW Update (via OTA or USB),

See user manual for full details.

2x HDMI 1.4
USB-C (for Touch control and Video input)
USB-A (for Wi-Fi Adapter only)
RJ45 (for IoT LAN port)
RJ45 (for optional OSD remote)
DisplayPort 1.2
3.5mm TRS jack (for RS232/MDC)
3.5mm Audio Headphones out
4x Elo Edge Connect Micro USB 2.0

Power
Video Source Selection
On Screen Display

2x HDMI on Type A connector (HDCP-capable)
DisplayPort 1.2 connector (HDCP-capable)
USB-C connector (HDCP-capable)

Input Video Horizontal Sync frequency range: FHD: 30 – 70 KHz
Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz

3.5 mm TRS jack

2 x 8 W stereo speakers

Input connector (power): IEC 60320-C13
Input signal specifications (power): 100-240VAC 50/60Hz
Output connector (bypass input power to backside device): IEC 60320-C14
AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)

24 hours/day

ON: 47 W
SLEEP: 1.43 W
OFF: 0.29 W

39.66" x 23.45" x 2.19" / 1007.4 mm x 595.7 mm x 55.6 mm

45.28" x 7.36" x 32.28" / 1150 mm x 187 mm x 820 mm

40.72 lbs / 17.87 kg

50.76 lbs / 22.96 kg

Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode: 0° C to 35° C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95% (38.7°C max wet bulb temperature)

VESA 400 x 400mm, M6

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3-year with AUR included

4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330

UL 62368-1
FCC/CEC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
VCCI (Japan)
RCM (Australia)
CCC/CEL, China RoHS (China)
NOM Mexico
IK07 and UL60950 for ball drop test

8.0

Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
OTA FW upgrade

4304L Interactive Display
Quick Install Guide
AC(in) Power cable, IEC 60320-C13 to NA plug
AC(in) Power cable, IEC 60320-C13 to EU/KR plug
AC(in) Power cable, IEC 60320-C13 to UK plug
AC(out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
USB cable (1m) (Connector: Type-C to Type-C)
Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI
4x M4x6mm flat head screws (for BrightSign players)
