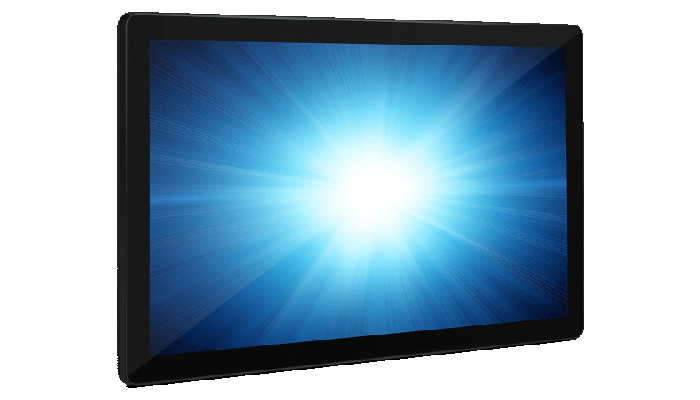

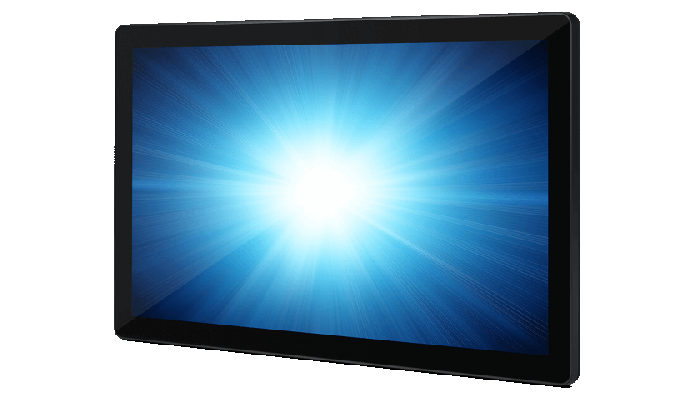

22-inch I-Series 2 with Intel

PCAP Celeron Win10, 128GB SSD, 4GB RAM - E692640
PCAP Celeron ChromeOS Flex, 128GB SSD, 4GB RAM - E291924
PCAP Celeron No OS, 128GB SSD, 4GB RAM - E692837
PCAP i3 Win10, 128GB SSD, 8GB RAM - E850591
PCAP i3 ChromeOS Flex, 128GB SSD, 8GB RAM - E292123
PCAP i3 No OS, 128GB SSD, 8GB RAM - E850387
PCAP i5 ChromeOS Flex, 128GB SSD, 8GB RAM - E292309

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)
i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Celeron: N/A
i3: Intel H310 Express
i5: Intel Q370 Express

Celeron: Intel UHD Graphics 600
i3 & i5: Intel UHD Graphics 630

AMI

Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

128GB M.2 SATA SSD 72 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

2.0

Celeron: N/A
i3 & i5: Active Management Technology (Intel AMT 11.0) Support

21.5'' diagonal, Active matrix TFT LCD (LED)

16:9

18.74" x 10.54" / 476.0 mm x 267.8 mm

1920 x 1080 @ 60Hz

16.7 million

LCD panel: 250 nits
TouchPro PCAP: 225 nits

14 msec

1000:1

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals

1 x LAN RJ45 (Gigabit)

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth 5.0

1 x 3.5mm line out

2 x 2W internal speakers

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit
ChromeOS Flex

Windows 10 - 36 Language groups

External USB-C power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 100W

Celeron: 39 W
i3: 77 W
i5: 83 W
Sleep: < 5W
Off: < 0.5W

20.7" x 12.57" x 2.07" / 525.9 mm x 319.2 mm x 52.6 mm

24.61" x 7.72" x 17.2" / 625 mm x 196 mm x 437 mm

11.5 lbs / 5.2 kg

15.4 lbs / 7 kg

0°C to 35°C / 32°F to 95°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC
Korea KCC for i5 Models only
India BIS for i2 Models only

50,000 hours demonstrated

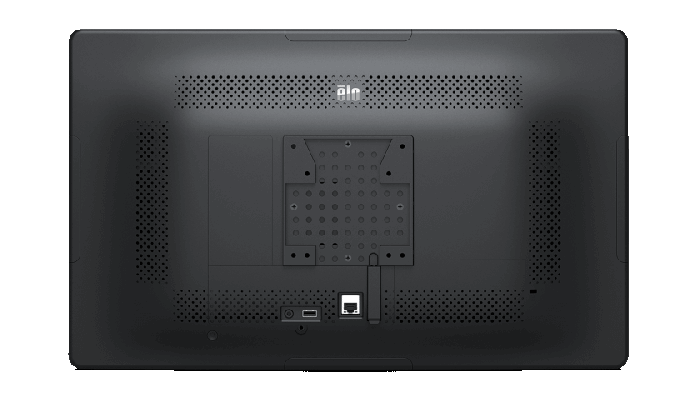

75mm or 100mm VESA mount

3 years

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Serviceable internal components
Kensington lock

I-Series 2.0 for Windows Touchcomputer
North America Power Cord
European Power Cord
Power Adapter - 100W
Cable cover locking screw
Quick Install Guide
