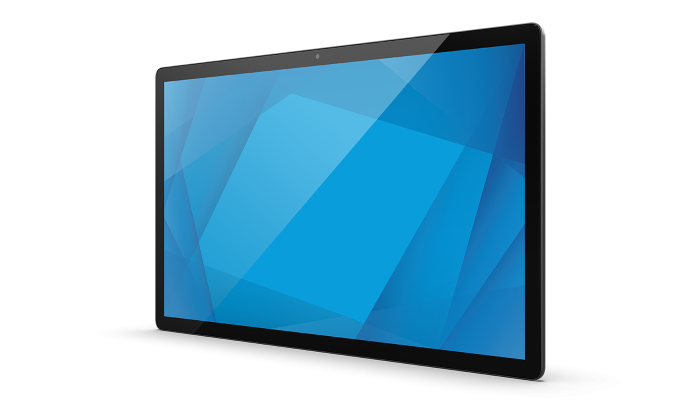

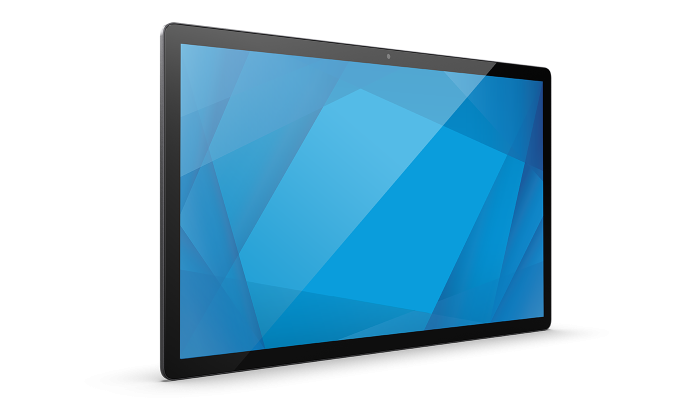

15-inch I-Series Slate with Linux

E240416

Dark Gray Metallic

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Rockchip RK3399

4GB

32GB

Linux Debian 10

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344 mm x 194 mm

1920 x 1080 @ 60Hz

8-bit (16.7 million)

Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits

Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits

20 msec

1000:1

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports

Display Head Interface:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)

I/O Hub:
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)

5MP
Max Resolution: 1920x1080 30fps
Auto Focus

802.11a/b/g/n/ac + Bluetooth 5.0

1x built-in Analog Microphone

2x 1W

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

ON: 9.32W
OFF: 0.4W
SLEEP: 4.84W

14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm

17.4" x 12.2" x 6.1" / 443 mm x 310 mm x 156 mm

3.5 lbs / 1.6 kg

7.61 lbs / 3.45 kg

0°C to 40°C / 32°F to 104°F

-20°C to 50°C / -4°F to 122°F

Operating: 20% to 80%
Storage: 5% to 95%

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

50,000 hours demonstrated

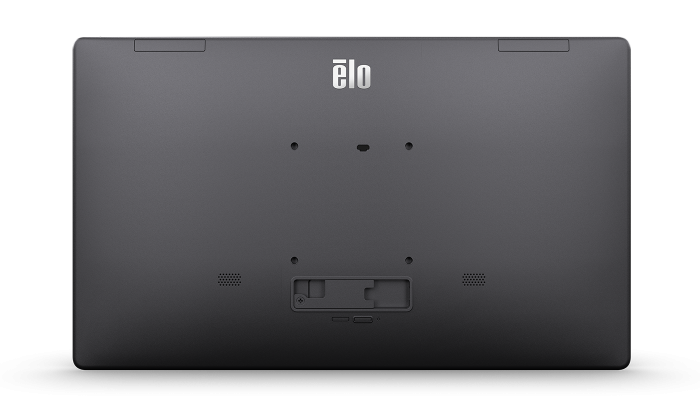

VESA 75mm

2 years

3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

Touchscreen sealed to LCD

I-Series Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Flathead screws in a plastic bag
4 x M4x6 mm Panhead screws in a plastic bag
