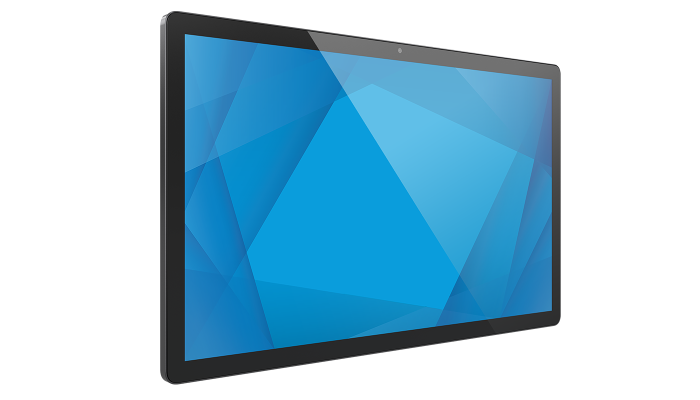

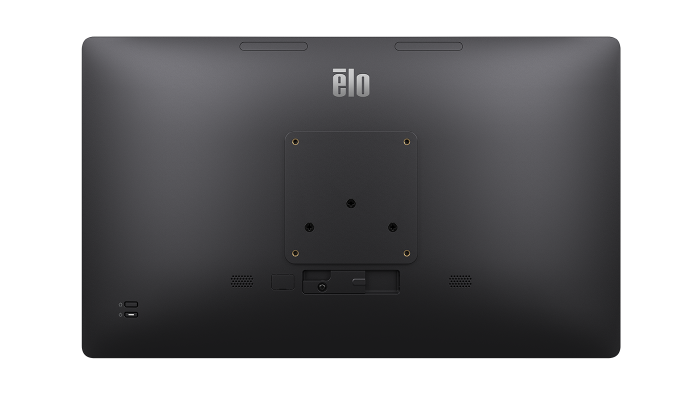

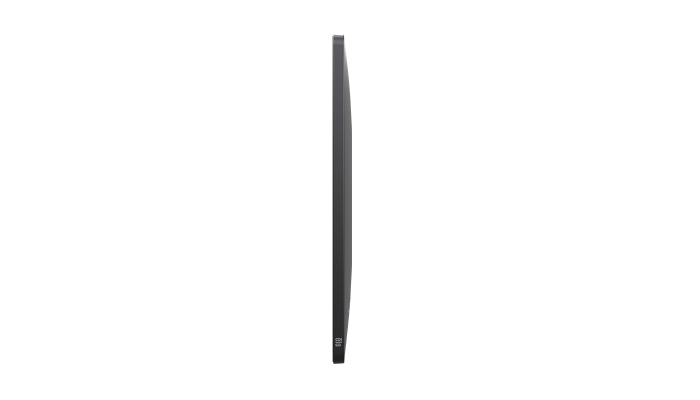

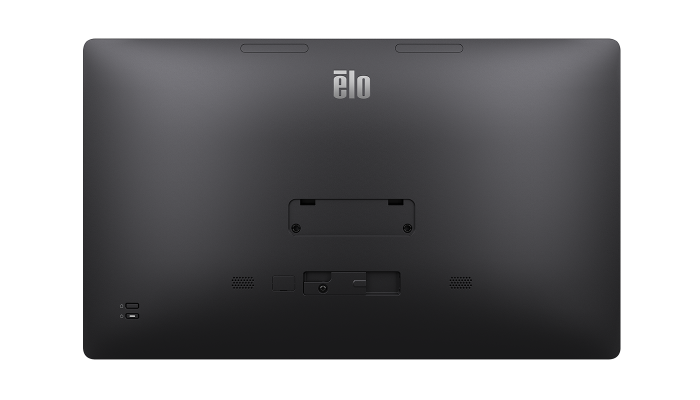

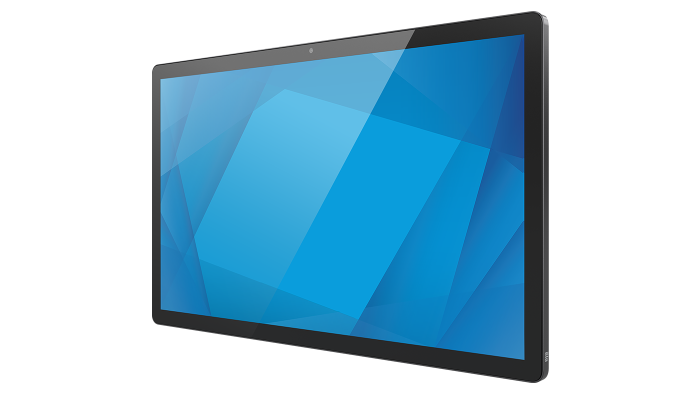

15-inch I-Series 5 Slate for Android

E540697

Dark Gray Metallic

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Qualcomm Snapdragon QCS6490

8GB

64GB

Android 14 with Google Play Services (AOSP capable)
Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344 mm x 194 mm

1920 x 1080 @ 60Hz

8-bit (16.7 million)

LCD Panel: 350 nits
TouchPro PCAP: 280 nits

20 msec

1000:1

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports

Display Head Interface:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)

I/O Hub:
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)

8MP, Max Resolution: 3200x2400 30fps, Auto Focus

802.11a/b/g/n/ac/ax + Bluetooth 5.2

2x built-in Digital Microphones

2x 1W

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

On: 8.5W
Off: 0.4W
Sleep: 3W

Supported via Elo PoE Device PN: E669163

With VESA: 14.6" x 8.7" x 0.6" / 370.3 mm x 221.3 mm x 15.1 mm

17.4" x 12.2" x 6.1" / 445 mm x 308 mm x 160 mm

3.44 lbs / 1.56 kg

7.74 lbs / 3.51 kg

0°C to 40°C / 32°F to 104°F

-20°C to 50°C / -4°F to 122°F

Operating: 20% to 80%
Storage: 10% to 90%

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

Lithium coin cell battery

50,000 hours demonstrated

VESA 75 mm / Z-Hinge

2 years

3 year OS 360 - Elo P/N: E897877
4 year OS 360 - Elo P/N: E898079
5 year OS 360 - Elo P/N: E898282
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

Bi-monthly Android security updates available with Elo OS 360 package.

Touchscreen sealed to LCD

I-Series 5 Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Panhead screws in a plastic bag
