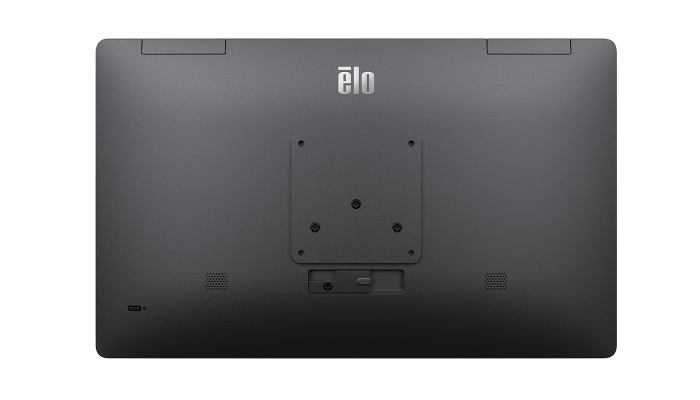

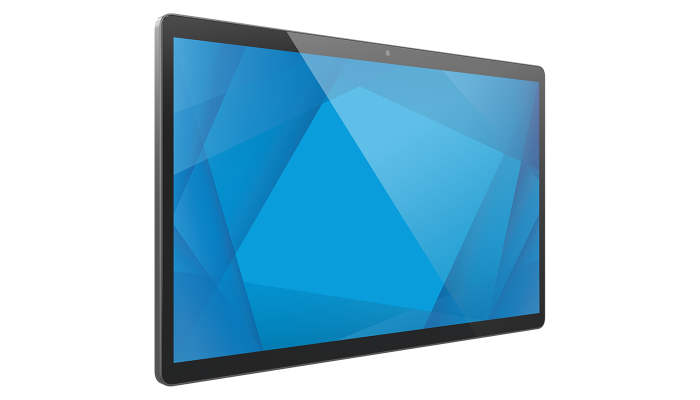

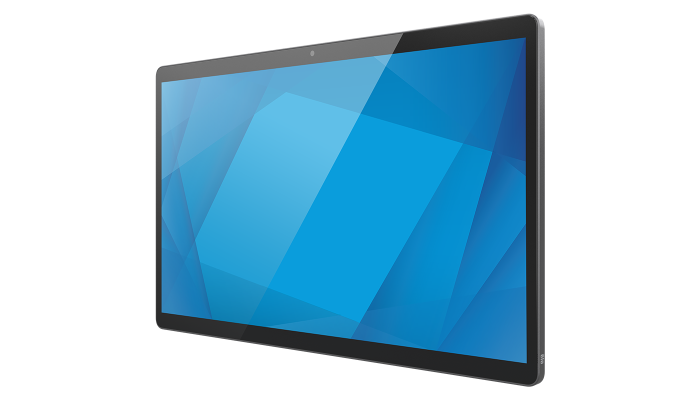

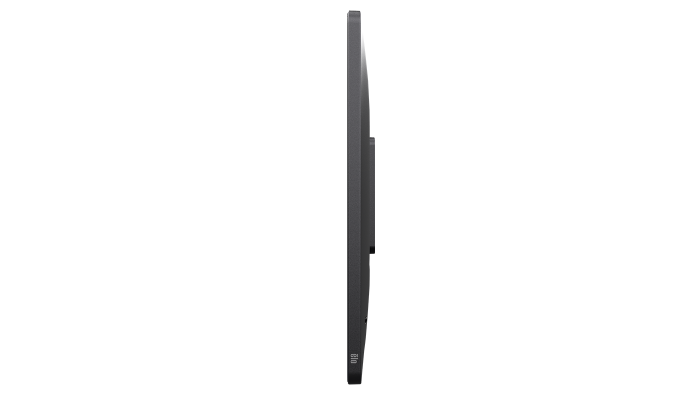

Built to be one of the thinnest commercial-grade fixed tablet form factors, the I-Series Slate delivers a 15.6-inch Full HD interactive display, powerful Intel processor and your choice of Windows, Chrome and Linux (SuSE, Ubuntu and Red Hat). Backed by reliable, enterprise-grade security and performance, the I-Series offers a modular platform with versatility to fit almost any application – from pointof-sale and interactive signage to self-service and automation controls.
|
Part Number |
No OS - E983676 |
|
Enclosure Color |
Dark Gray |
|
Touch Technology & Capacity |
PCAP (TouchPro® Projected Capacitive) - 10 Touch |
|
Processor |
Intel Elkhart Lake J6426 |
|
Graphics |
Intel UHD Graphics |
|
BIOS |
AMI |
|
Memory (RAM) |
8GB 3200MHz DDR4 SO-DIMM on 1 slot (Expandable to 32GB maximum on 1 slot) |
|
Storage |
128GB M.2 NVME SSD 72 TBW |
|
TPM |
2.0 |
|
Diagonal Size |
15.6'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
16:9 |
|
Active Area |
13.55" x 7.62" / 344.2 mm x 193.5 mm |
|
Resolution |
1920 x 1080 @ 60Hz |
|
Number of Colors |
16.2 million |
|
Brightness |
LCD panel: 300 nits |
|
Response Time-total (typical) |
25 msec |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
|
Webcam |
8MP |
|
I/O Ports |
Display Head Interface: |
|
Wireless |
802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
|
Bluetooth |
Bluetooth 5.2 |
|
Antenna |
2T2R design |
|
Microphone |
Digital Microphone |
|
Speakers |
2 x 2W internal speakers |
|
OS |
No OS |
|
Languages |
Windows 10 - 36 Language groups |
|
Power Supply |
External 19VDC universal-type power supply brick |
|
Power Consumption (Typical) |
ON: 30W |
|
Dimensions |
Without VESA Adapter: 14.3" x 8.8" x 0.6" / 362.8 mm x 223.4 mm x 15.3 mm |
|
Shipping Box Dimensions |
18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm |
|
Weight (Unpackaged) |
3.53 lbs / 1.6 kg |
|
Weight (Packaged) |
8.81 lbs / 4 kg |
|
Operating Temperature |
0°C to 35°C / 32°F to 95°F |
|
Storage Temperature |
-20°C to 60°C / -4°F to 140°F |
|
Humidity |
Operating: 20% to 80% |
|
Energy Star |
Energy Star 8.0 |
|
Regulatory approvals and declarations |
UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA |
|
MTBF |
50,000 hours demonstrated |
|
Mounting Options |
75mm VESA mount |
|
Warranty |
3 years |
|
Extended Service Options |
4 year warranty coverage - Elo P/N: E819598 |
|
What's in the Box |
I Series Slate |
