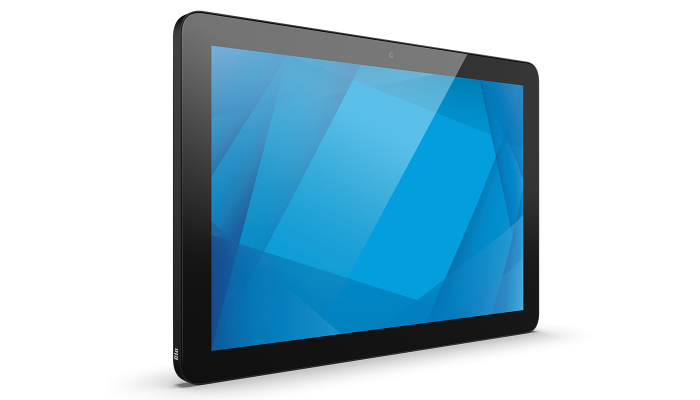

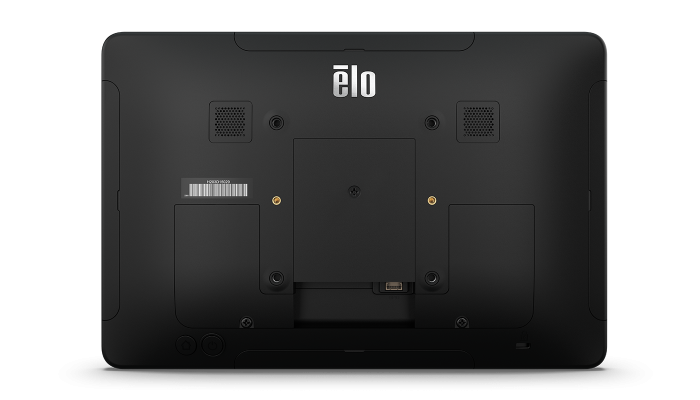

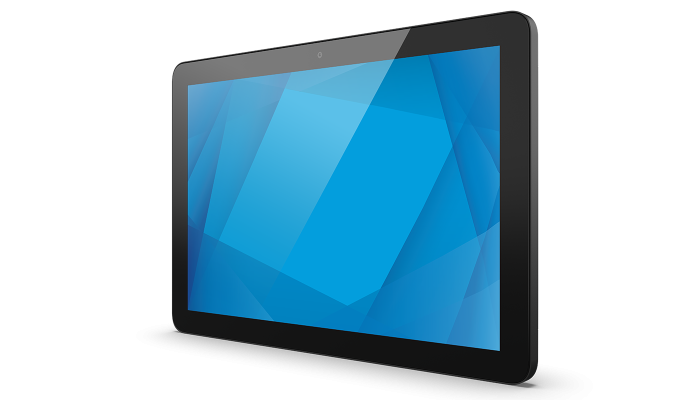

10-inch I-Series 5 for Android

Black - E539154

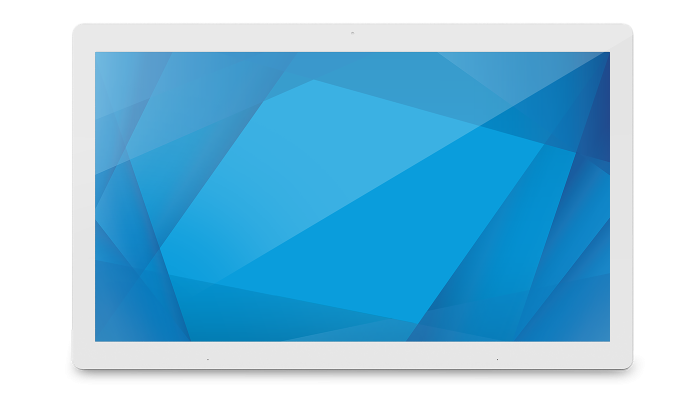

White - E539346

White or Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches

Qualcomm Snapdragon QCS6490

8GB

64GB

Android 14 with Google Play Services (AOSP capable)
Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription

10.1'' diagonal, Active matrix TFT LCD (LED)

16:10

8.54" x 5.34" / 217 mm x 136 mm

1920 x 1200 @ 60Hz

8-bit (16.7 million)

LCD Panel: 450 nits
TouchPro PCAP: 387 nits

30 msec

900:1

Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three ports

1x USB 3.0 support (900mA)
Type C USB output*
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in

8MP, Max Resolution: 3200x2400 30fps, Auto Focus

802.11a/b/g/n/ac/ax + Bluetooth 5.2

2x built-in Digital Microphones

2x 2W

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

On: 6.0W
Off: 0.2W
Sleep: 2.0W

Supported via Elo PoE Device PN: E669163

10.0" x 6.7" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm

12.6" x 6.0" x 9.8" / 320 mm x 150 mm x 235 mm

3.1 lbs / 1.4 kg

7.9 lbs / 3.6 kg

0°C to 40°C / 32°F to 104°F

-20°C to 50°C / -4°F to 122°F

Operating: 20% to 80%
Storage: 10% to 90%

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

Lithium coin cell battery

50,000 hours demonstrated

VESA 75mm

2 years

3 year OS 360 - Elo P/N: E897877
4 year OS 360 - Elo P/N: E898079
5 year OS 360 - Elo P/N: E898282
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

Bi-monthly Android security updates available with Elo OS 360 package.

Touchscreen sealed to LCD

I-Series 5
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)
