Description |

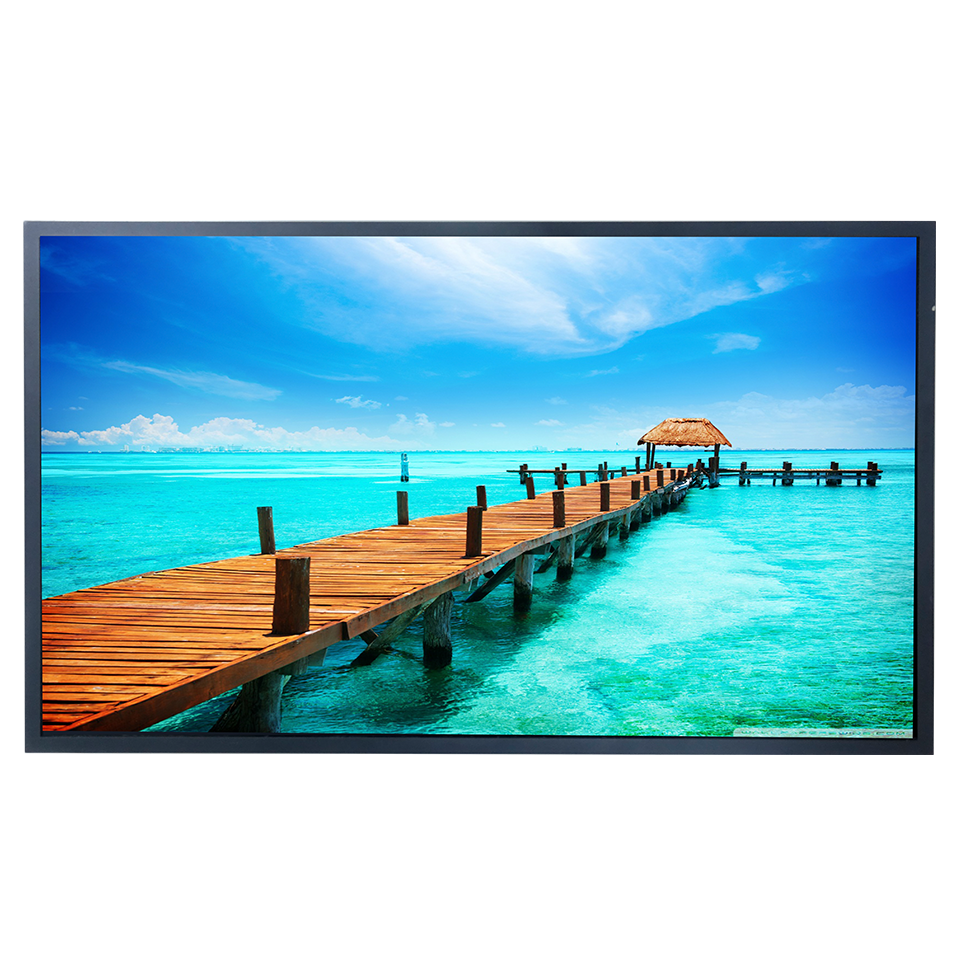

21.5" TFT LCD, 1600 nits LED backlight, 1920x1080 |
|
Screen Size |
21.5" |
|
Display Area (mm) |
476.6(H) x 268.1(V) |
|
Brightness |
1600 cd/m2 |
|
Resolution |
1920x1080 |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
1100:1 |
|
Pixel Pitch (mm) |
0.24825 (H) x 0.24825 (V) |
|
Pixel Pre Inch (PPI) |
102 |
|
Viewing Angle |
170° (H), 160° (V) |
|
Color Saturation (NTSC) |
82% |
|
Display Colors |
16.7M |
|
Response Time (Typical) |
5ms |
|
Panel Interface |
LVDS |
|
Input Interface |
VGA,DVI-D,HDMI |
|
Input Power |
DC12V |
|
Power Consumption |
34.6W(36.6W with AD Board) |
|
Dimensions (mm) |
497.6x292.2x13.35 |
|
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Bezel Size(U/B/L/R) |
12.045/12.045/10.48/10.48 |
|
Weight (Net) |
2.1kg |
|
Mounting |
75x75 |
|
Operating Temperature |
0°C ~ +50°C |
|
Storage Temperature |
-20°C ~ +60°C |
Download PDF + DWG
