Description |

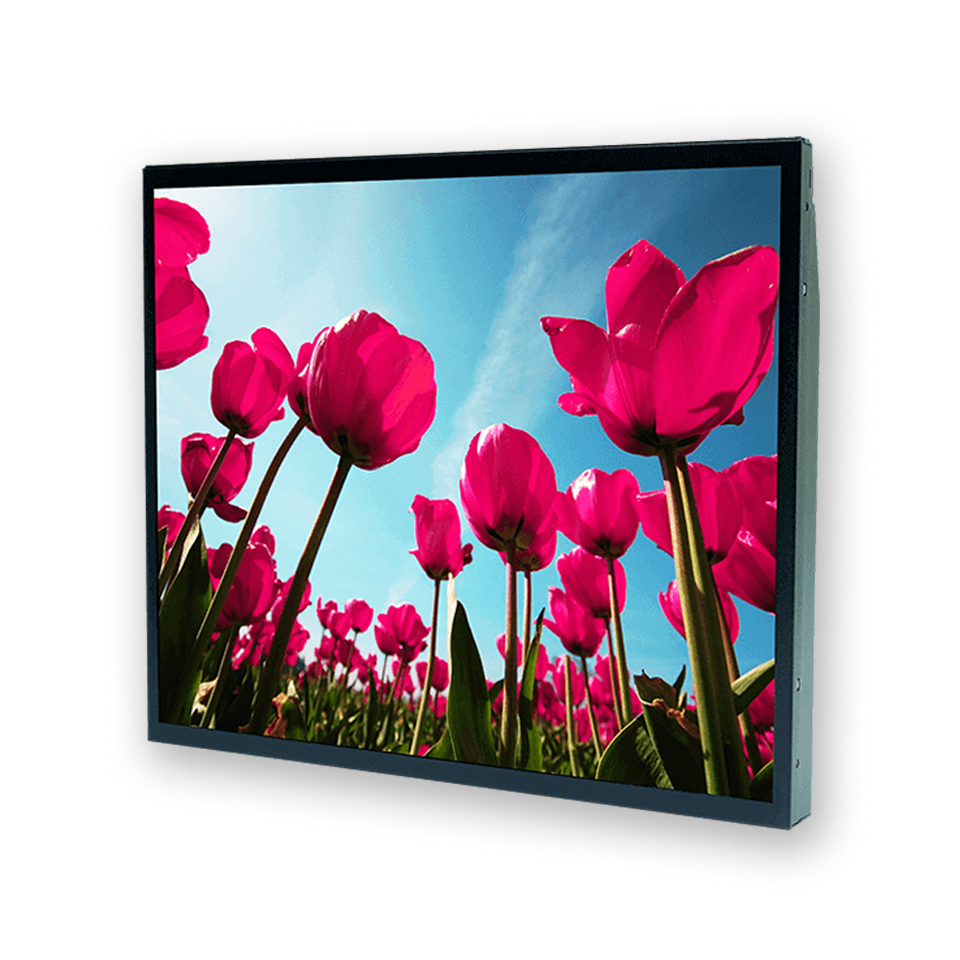

17” TFT LCD, 1600nits LED Backlight, 1280x1024 |
|
Screen Size |
17” |
|
Display Area (mm) |
337.92 (H) x 270.34(V) |
|
Brightness |
1600 cd/m² |
|
Resolution |
1280 x 1024 |
|
Aspect Ratio |
5:4 |
|
Contrast Ratio |
1000:1 |
|
Pixel Pitch (mm) |
0.264 (H) x 0.264 (V) |
|
Pixel Pre Inch (PPI) |
96 |
|
Viewing Angle |
160°(H),140°(V) |
|
Color Saturation (NTSC) |
80% |
|
Display Colors |
16.7M |
|
Response Time (Typical) |
30ms |
|
Video interface |
LVDS |
|
Panel Interface |
LVDS |
|
Input Interface |
DVI-I, HDMI, DP |
|
Input Power |
DC12V |
|
Power Consumption |
29W(31.5W with AD Control Board) |
|
Dimensions (mm) |
358.5 x 296.5 x 14.7 |
|
Bezel size (U/B/L/R) |
13.08/13.08/10.29/10.29 |
|
Weight (Net) |
1.65kg |
|
Mounting |
75x75 |
|
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Operating Temperature |
-30 ˚C ~ 85 ˚C |
|
Storage Temperature |
-30 ˚C ~ 85 ˚C |
