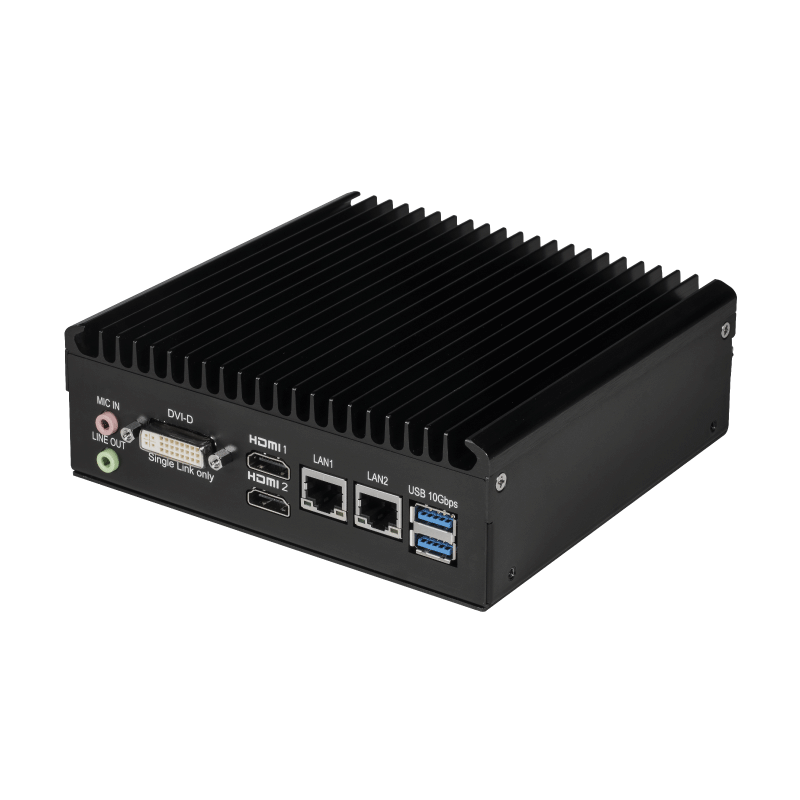

SBOX-2603

SBOX-2603-R2312

AMD Ryzen™ Embedded R2312 2C/4T Processor

1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

2 x I210-AT

TPM 2.0

System power on/off 1 ~ 255 min setting by BIOS

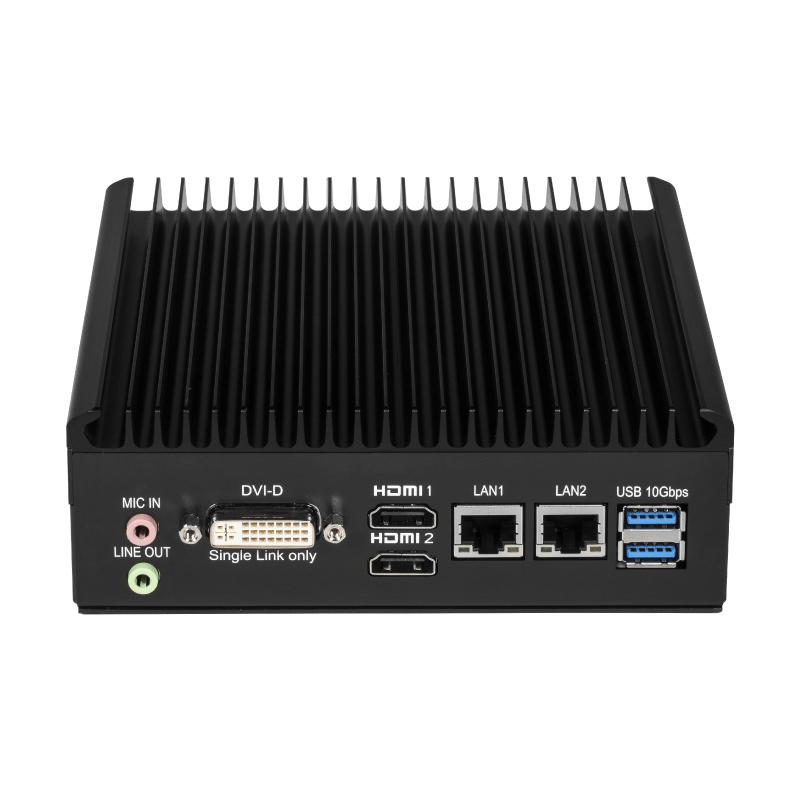

1 x DVI-D (Single link with custom pin define)
2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b

1 x Line-out and 1 x Mic-in

2 x GbE RJ45 port

2 x USB 3.2 Gen 2 (10Gbps)
2 x USB 2.0

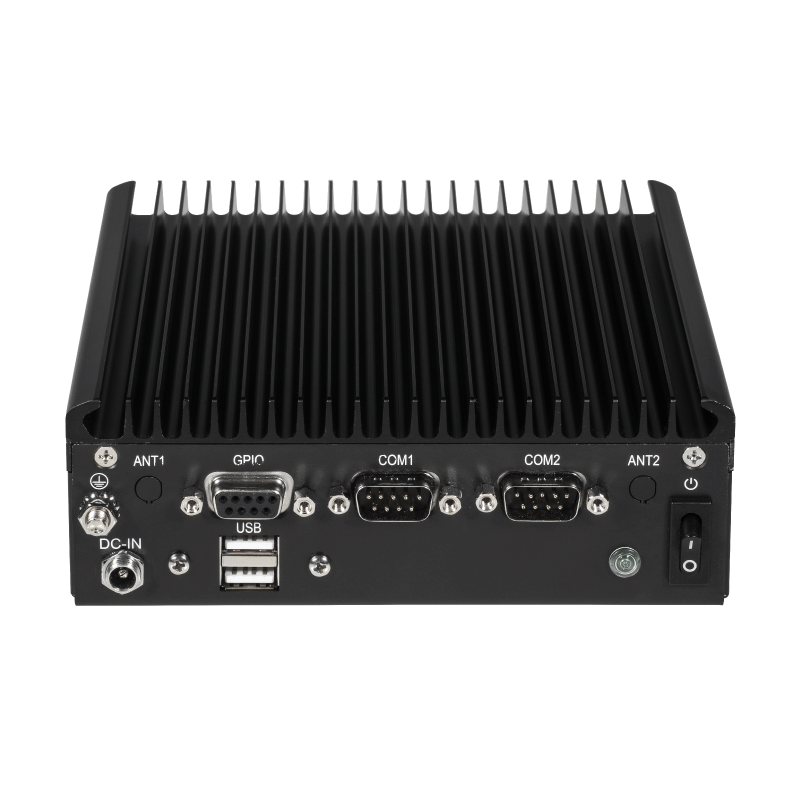

1 x GPIO port supports 8 x GPIO 5V TTL level

2 x RS-232/422/485

1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM
1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT

1 x M.2 2280 Key M supports NVMe or SATA SSD
1 x 2.5” SATA SSD

DC 12V only via DC Jack

-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

-40 ~ 80°C

10% RH ~ 90% RH (non-condensing)

CE, FCC Class A, UKCA

Aluminum Alloy

Wall-mounting

1.3Kg

176 (L) x 140 (W) x 52 (H) mm
