Description |

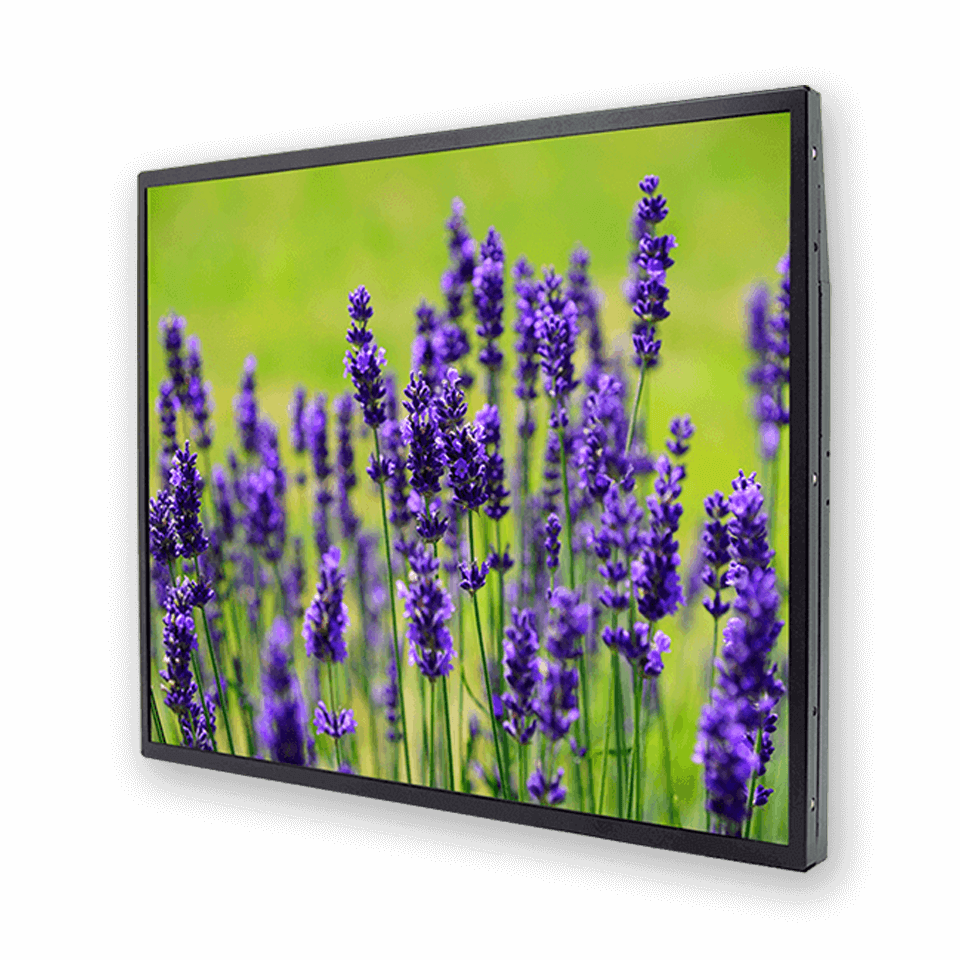

19" TFT LCD, 1600/2000 nits LED backlight, 1280x1024 |
|
Screen Size |
19” |
|
Display Area (mm) |
376.3(H) x 301.06(V) |
|
Brightness |
1600/2000 cd/m² |
|
Resolution |
1280 x 1024 |
|
Aspect Ratio |
5:4 |
|
Contrast Ratio |
1000:1 |
|
Pixel Pitch (mm) |
0.294 (H) x 0.294 (V) |
|
Pixel Pre Inch (PPI) |
86 |
|
Viewing Angle |
170° (H), 160° (V) |
|
Color Saturation (NTSC) |
80% |
|
Display Colors |
16.7M |
|
Response Time (Typical) |
10ms |
|
Video interface |
LVDS |
|
Input Power |
DC12V |
|
Power Consumption |
35W |
|
Dimensions (mm) |
396x324x14.5 |
|
Bezel size (U/B/L/R) |
11.475/11.475/9.840/9.840 |
|
Weight (Net) |
2.45 kg |
|
Mounting |
75x75 |
|
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Operating Temperature |
-30 ˚C ~ 85 ˚C |
|
Storage Temperature |
-30 ˚C ~ 85 ˚C |
|
Product approval |
CE, FCC |
Download PDF + DWG
