Description |

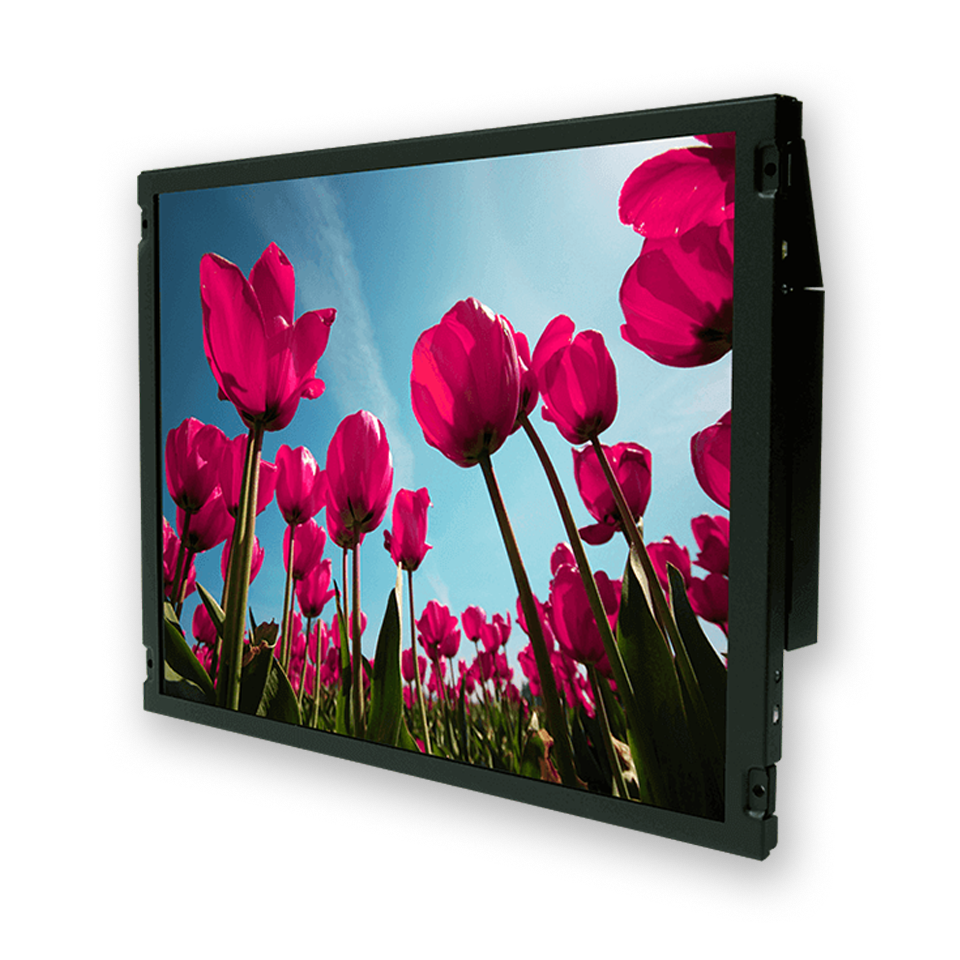

15” TFT LCD, LED Backlight 1600/2000nits, 1024x768 |
|
Screen Size |
15” |
|
Display Area (mm) |
304.1(H) x 228.1(V) |
|
Brightness |
1600/2000 cd/m² |
|
Resolution |
1024x768 |
|
Aspect Ratio |
4:3 |
|
Contrast Ratio |
3000:1/4000:1 |
|
Pixel Pitch (mm) |
0.297(H) x 0.297(V) |
|
Pixel Pre Inch (PPI) |
85 |
|
Viewing Angle |
176°(H),176°(V) |
|
Color Saturation (NTSC) |
85% |
|
Display Colors |
16.7M |
|
Response Time (Typical) |
23ms |
|
Video interface |
LVDS |
|
Panel Interface |
V-by-One |
|
Input Interface |
DVI-I, HDMI, DP |
|
Input Power |
DC12V |
|
Power Consumption |
20W |
|
Dimensions (mm) |
326.5x253.5x21 |
|
Bezel size (U/B/L/R) |
11.1/11.1/9.55/9.55 |
|
Weight (Net) |
1 kg |
|
Mounting |
VESA 75x75 |
|
OSD Key |
4 Keys (Power Switch, Menu, +, -) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Operating Temperature |
-30 ˚C ~ 80 ˚C |
|
Storage Temperature |
-40 ˚C ~ 80 ˚C |
|
Product approval |
CE, FCC |
Download PDF + DWG
