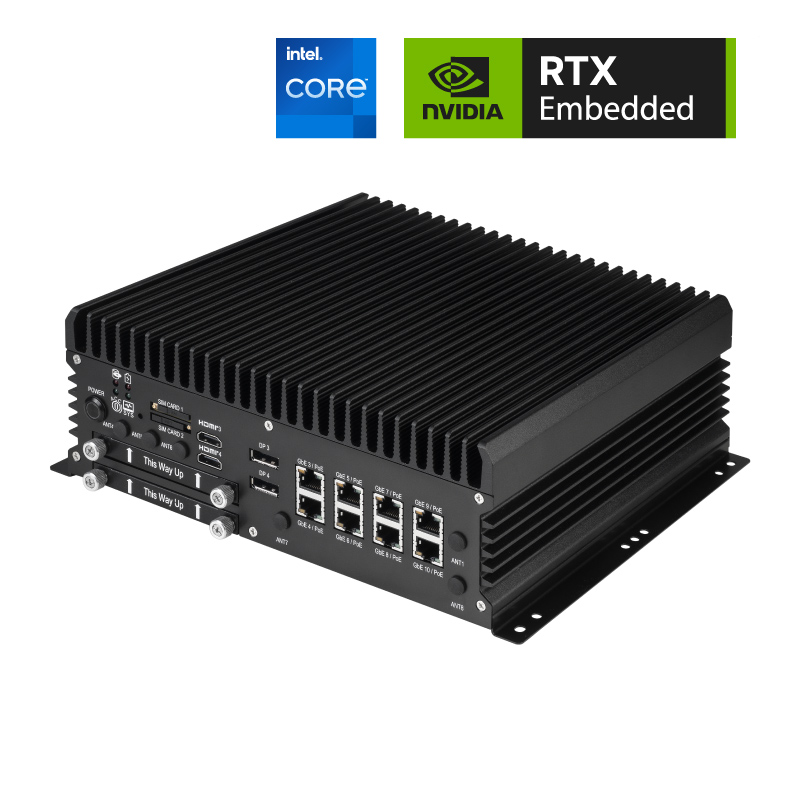

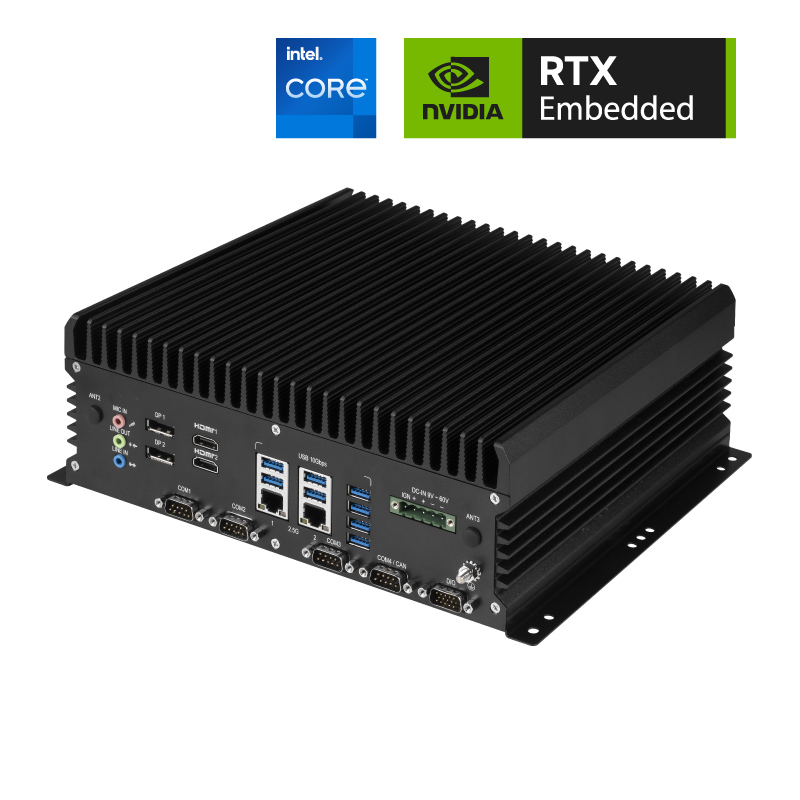

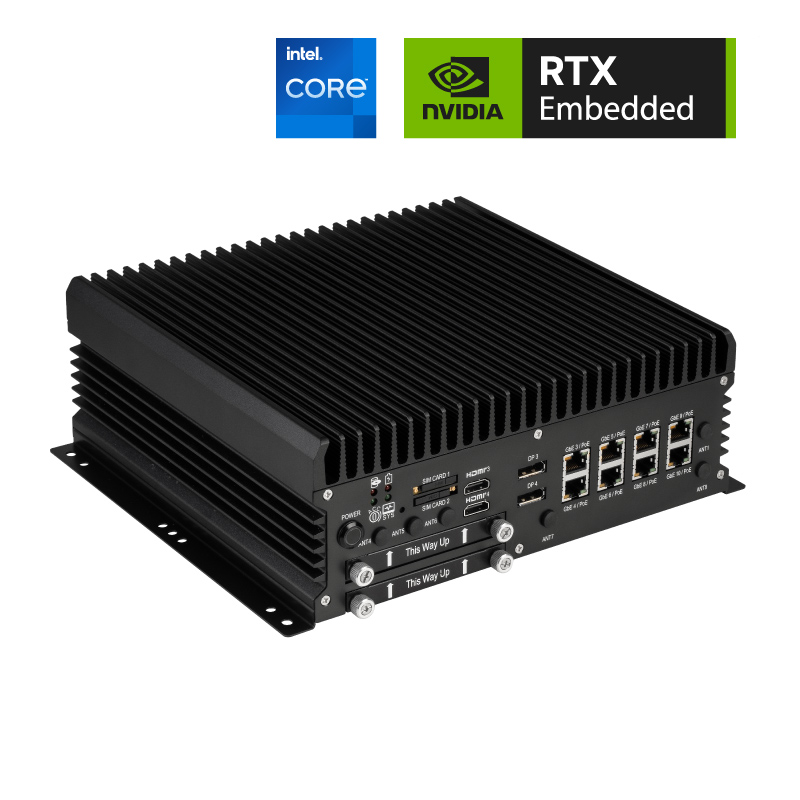

ABOX-5220

ABOX-5220

i9 processor 14900T
i7 processor 14700T
i5 processor 14500T
i3 processor 14100T

R680E

2 x SO-DIMM Support DDR5-4800 up to 64GB
(ECC Support with ECC DRAM)

System power on/off 1 ~ 255 min setting by BIOS

2.0

Processor Built-in GPU – Intel® UHD 700 Series Graphics

Optional Discrete GPU
・NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada
・Intel Arc A370E

Without Discrete GPU :
2 x HDMI®(Maximum Resolution : 4096 x 2160 @ 60Hz)

With Discrete GPU :
Additional 2 x HDMI (Maximum Resolution : 4096 x 2160 @ 60Hz)

Without Discrete GPU :
2 x DP 1.4 (Maximum Resolution : 7680 x 4320 @ 60Hz)

With Discrete GPU :
Additional 2 x DP 1.4 (Maximum Resolution : 7680 x 4320 @ 60Hz)

2 x I226-IT 2.5GbE RJ45 and 8 x I210-AT GbE RJ45
(Optional PoE with Total 120W Power Budget and M12 X-coded Connectors)

2 x M.2 2280 Key M for PCIe 4.0 x4 NVMe SSD
1 x M.2 2280 Key M for PCIe 4.0 x4 NVMe or SATA SSD (Auto Dectection)
2 x 2.5” Drive Bay for SATA Type SSD
* Thermal solution is required for M.2 NVMe and SATA SSD

2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot

2 x M.2 3042/52 Key B for WWAN (USB3.0) with Dual SIM Support
1 x M.2 2230 Key E for WiFi

1

1

1

DC 9-60V

4 x RS-232/422/485

8 x USB 3.2 Gen 2×1 10Gbps

8 x DI (9~60VDC), 4 x DO (5V, 100mA)

10% RH – 90% RH (non-condensing)

-40°C ~ 70°C w/0.6 m/s airflow (for barebone system)

-40°C ~ 80°C

290(L) x 250(W) x 98(H) mm

8.5kg

Aluminum Alloy

Wall-mount
