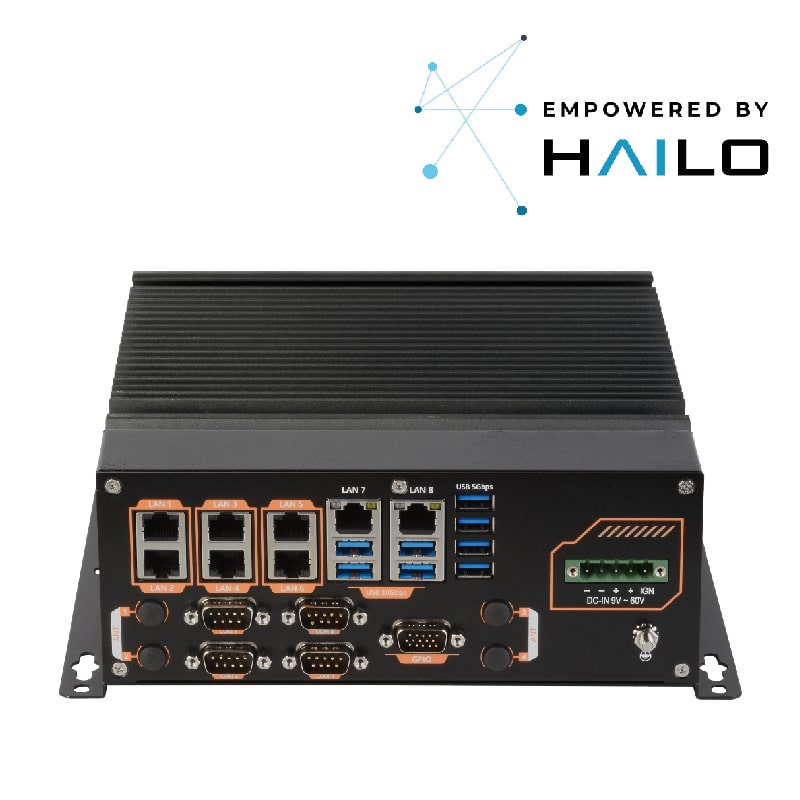

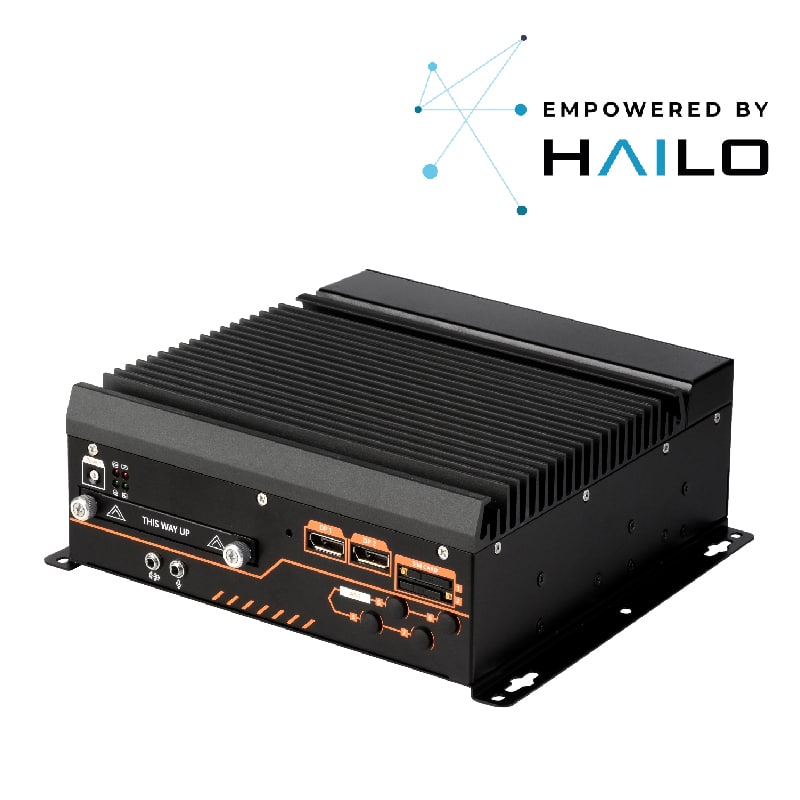

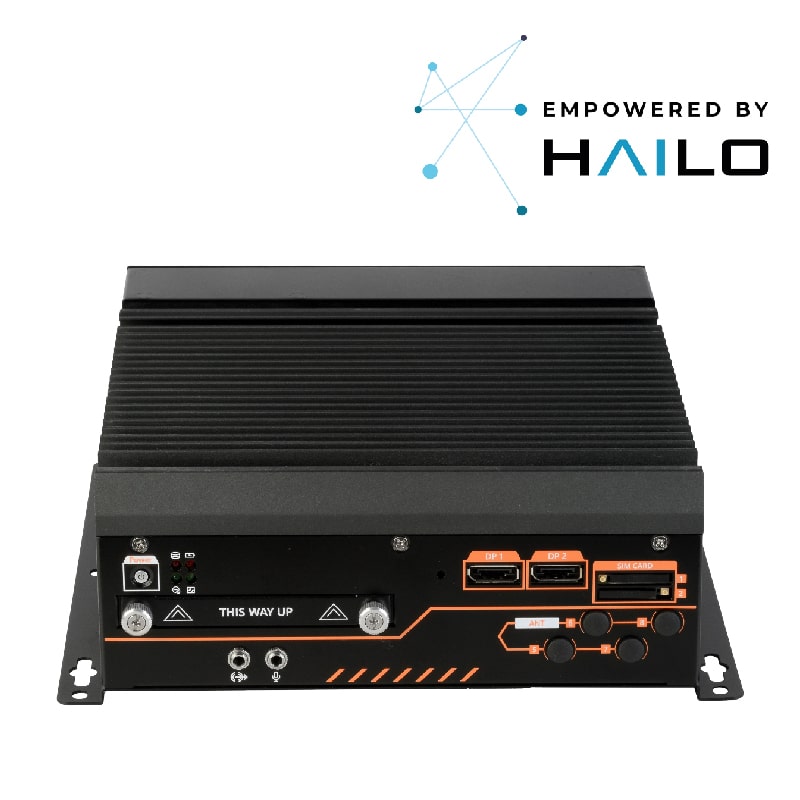

The ABOX-5211(P) Series is powered by the 10th Gen Intel® Core™ i9-10900TE processor and boasts 8 x DI, 4 x DO, and 4 x RS-232/422/485 support. It is perfect for Industrial loT deployments, with high-performance computing and real-time capabilities certified by Intel® ESDQ (Edge Software Device Qualification) for Autonomous Mobile Robots (AMR). The Intel® UHD Graphics 630 Graphics and single-side I/O panel design, along with 9~60VDC power input, make it ideal for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AloT/Industry 4.0 applications. Moreover, it is suitable for industrial automation, digital signage, outdoor video surveillance, and AGV/AMR. In addition, ABOX-5211(P) Series accelerates AI inferencing for Edge Computing applications by equipping up to two Hailo-8™ AI Accelerators, and a single Hailo-8™ AI Accelerator offers 26 TOPS inference performance.
|
Part Number |
ABOX-5211 |
|
Processor |
i9-10900TE (20M Cache 2.0GHz up to 4.5GHz) |
|
Chipset |
Q470E |
|
Memory |
2 x DDR4 3200MHz SO-DIMM up to 64GB |
|
Watchdog |
1 ~ 255 Level Reset |
|
TPM |
2.0 |
|
Graphics Engine |
Intel® UHD Graphics 630 for i9/i7/i5/i3 |
|
DisplayPort |
2 |
|
Resolution |
Max Resolution (DP 1.2): 4096 x 2340 @ 60Hz |
|
LAN Chipset |
7 x Intel® i210-AT and 1 x i219LM (support iAMT) Gb/s |
|
LAN |
8 x RJ45 Ports for GbE (Optional 8 x POE total Max.120W) |
|
SSD/HDD |
1 x 2.5″ Drive Bay for SATA Type HDD/SSD (Rear Panel) |
|
M.2 |
2 x M.2 2280 M Key supports NVMe |
|
Line-out |
1 |
|
Mic-in |
1 |
|
Power Input |
9V – 60V DC Power Input |
|
Serial Port |
4 x RS 232/422/485 |
|
USB |
4 x USB 3.2 10Gbps |
|
DIO |
8 x DI (5~60VDC) |
|
Mini PCI Express |
2 x Full Mini-PCle Slots (Support DIP Switch Enabled/Disabled SMBus Interface) |
|
Relative Humidity |
10% RH – 90% RH (non-condensing) |
|
Operating Temp |
-40°C ~ 70°C w/0.6 m/s airflow (for barebone system) |
|
Storage Temp |
-40°C ~ 80°C |
|
Dimensions |
240(L) x 242(W) x 85(H) mm |
|
Weight |
3680g (bare-bone) |
|
Construction |
Aluminum Extrusion with Steel Chassis |
|
Mounting |
Wall-mount |
