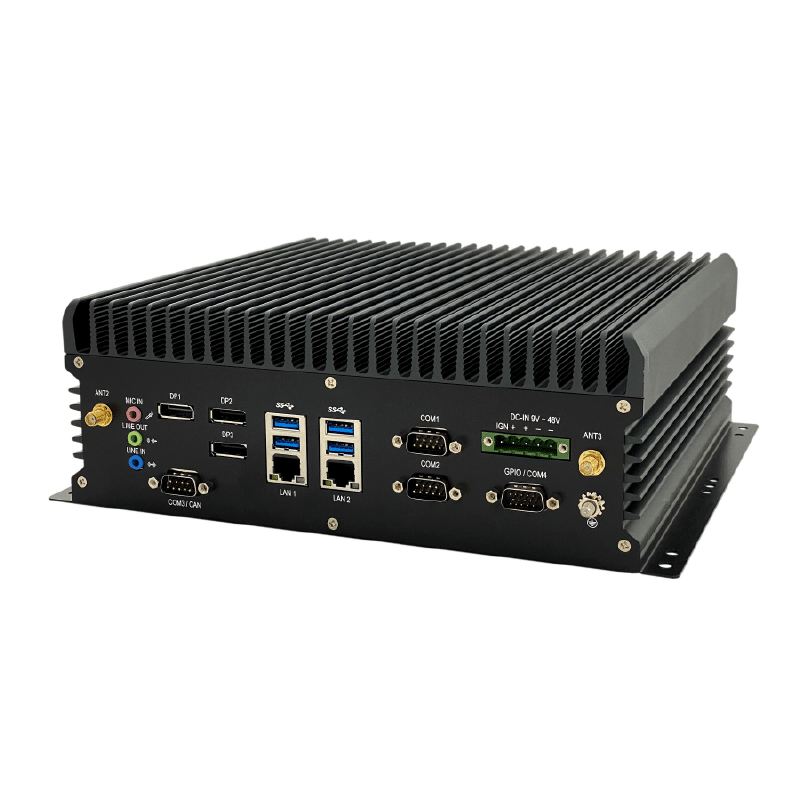

Intel® Xeon® or 10th Generation Intel® Core™ processor and NVIDIA® GPU both powers ABOX-5210(G) Series in Edge AI computing. It can provide high computing performance in graphic processing by harnessing the power of its graphics processing unit (GPU). ABOX-5210(G) features the dual hot-swappable SATA storage RAID 0, 1, 5, allowing more hardware maintenance and expansion flexibility. ABOX-5210(G) offers the best solution for customers, and it can be adapted to various industrial requirements, including Smart Solutions (Smart Patrol, Smart Factory Automation Control System), Surveillance Systems (Bus Surveillance Fleet Management, Outdoor Video Surveillance System), and Visual Management (Automatic License Plate Recognition, Vision Control System, Mining Machines).
|
Part Number |
ABOX-5210 |
|
Processor |
Intel® Xeon® W-1290TE (20M Cache 1.8GHz up to 4.6GHz) |
|
Chipset |
Q470E / W480E |
|
Memory |
2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE) |
|
Watchdog |
2 ~ 255 Level Reset |
|
TPM |
2.0 |
|
Graphics Engine |
N/A |
|
HDMI |
2 (MXM Graphics) |
|
DisplayPort |
3 (Intel built-in GPU) |
|
DVI |
N/A |
|
VGA |
N/A |
|
Resolution |
Max Resolution (DP 1.2): 4096 x 2340 @ 60Hz |
|
LAN Chipset |
9 x Intel i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL |
|
LAN |
10 x RJ45 Ports for GbE （Optional 8 with M12 X Coded Connectors) |
|
PoE |
Optional 8 x PoE Total Max.120W |
|
SSD/HDD |
2 x 2.5″ drive bay for SATA TypemPCIe |
|
M.2 |
1 x M.2 3042/3052 Key B for 5G/LTE modem wI 2 x SIM Card Sockets |
|
RAID |
0, 1, 5 |
|
Audio Codec |
N/A |
|
Line-out |
1 |
|
Mic-in |
1 |
|
Line-In |
1 |
|
Power Input |
9V – 48V DC Power Input |
|
Serial Port |
3 x RS 232/422/485 (option additional 1 x RS 232/422/485) |
|
USB |
4 x USB 3.2 5Gbps Ports |
|
DIO |
8 x DI (5~48VDC) and 4 x DO (5VDC, 100mA) |
|
Mini PCI Express |
2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot |
|
Relative Humidity |
10% RH – 90% RH (non-condensing) |
|
Operating Temp |
-40°C ~ 70°C w/0.6 m/s airflow (for barebone system) |
|
Storage Temp |
-40°C ~ 80°C |
|
Dimensions |
260(L) x 250(W) x 95(H) mm |
|
Weight |
5300g (bare-bone) |
|
Construction |
Aluminum Alloy |
|
Mounting |
Wall-mount |
