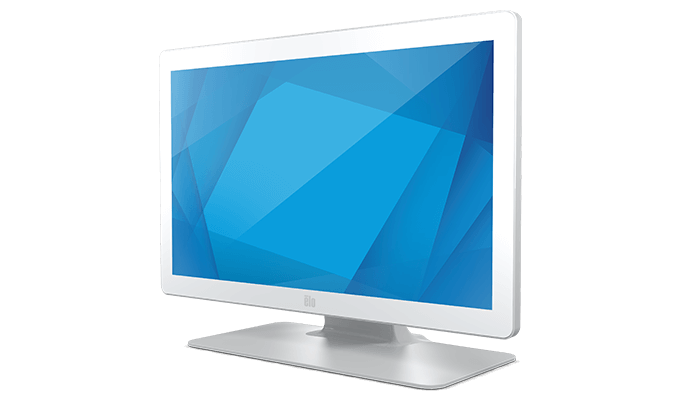

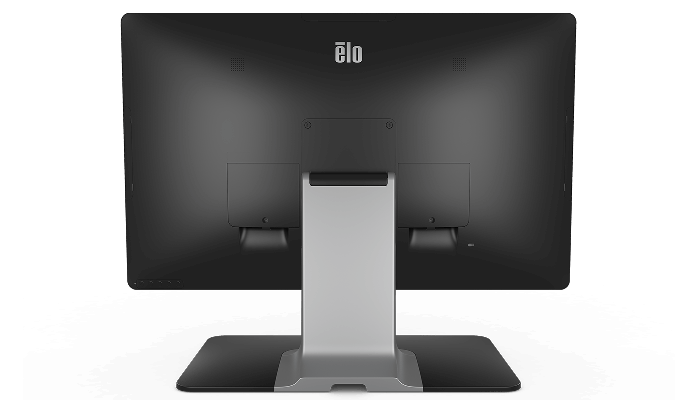

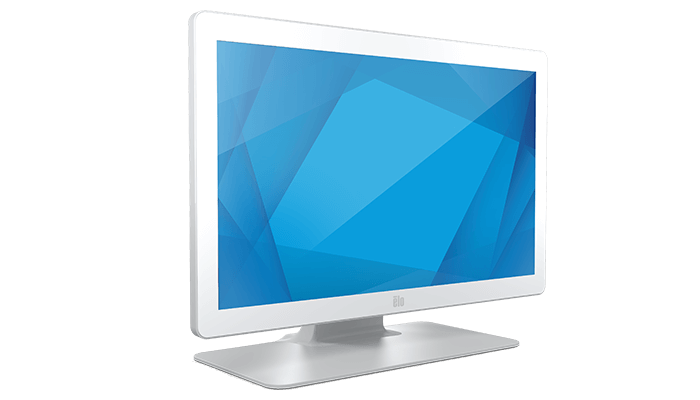

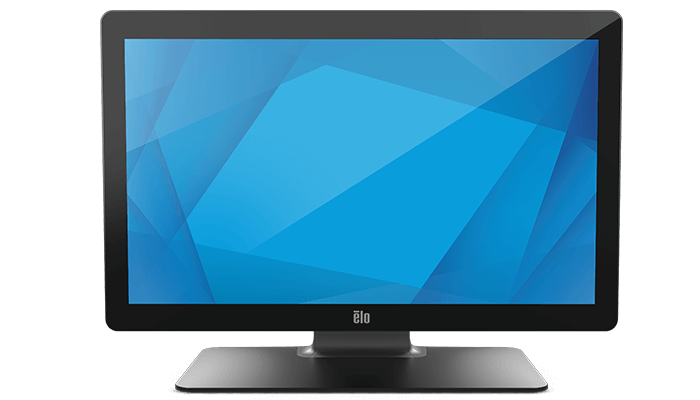

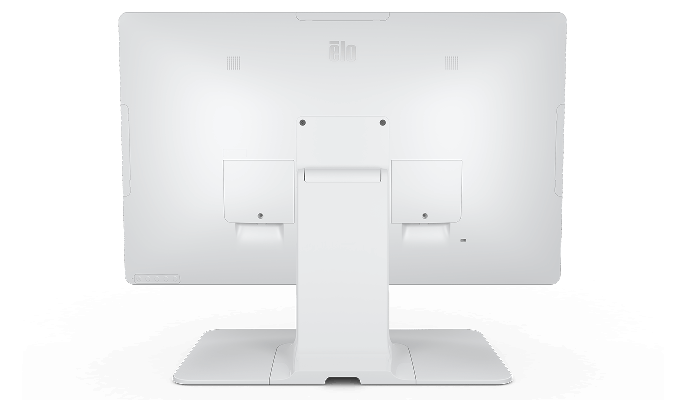

2203LM 22″ Medical Grade Touchscreen Monitor

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Technical Specifications

Part Number

TouchPro PCAP White with stand - E658992
TouchPro PCAP Black with stand - E658788
TouchPro PCAP White without stand - E381048
TouchPro PCAP Black without stand - E380851

Color

White or Black

Touch Technology & Capacity

PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

18.74" x 10.54" / 476.06 mm x 267.79 mm

Resolution

1920 x 1080 @ 50, 60Hz

Other Supported Resolutions

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits
TouchPro PCAP: 225 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Touch Interface

USB, Serial (via VGA)

Surface Treatment

Anti-glare

On-Screen Display (OSD)

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Lockouts: OSD, Power

I/O Ports

VGA (RS232 touch supported via E810917)
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB

Speakers

Two 2W internal speakers

Input Video Format

VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)

Input Video Frequency

Horizontal: 30 – 82KHz
Vertical: 50 - 75Hz

Power Consumption (Typical)

Monitor + AC/DC adapter
ON (Default - 80% Brightness): 14.8 W
ON (Typical - 100% Brightness): 16.78 W
SLEEP: 0.78 W
OFF: 0.36 W

Input Voltage

12VDC +/- 5%
100-240VAC, 50/60Hz

Input Connector

Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

Peripheral Mounting

4x Micro USB side ports (Top, Bottom, Left, Right)

Monitor Dimensions (with Stand)

15.11" x 20.74" x 7.61" / 383.8 mm x 526.9 mm x 193.4 mm

Shipping Box Dimensions

24.29" x 18.78" x 10.24" / 617 mm x 477 mm x 260 mm

Weight (Unpackaged)

With Stand: 14.88 lbs / 6.75 kg
Without Stand: 10.59 lbs / 4.8 kg

Weight (Packaged)

With Stand: 23.81 lbs / 10.8 kg
Without Stand: 16.43lbs / 7.45kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Mounting Options

VESA 4-hole 75mm and 100mm mounting interface on rear of unit

Warranty

3 years

Extended Warranty Option

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
India BIS
RoHS, China RoHS, WEEE, REACH

UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
CE: IEC 60601-1-2:2014 (Ed. 4)
Risk Management: ISO 14971:2007 + EN ISO 14971:2012
Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)

DICOM

DICOM Part 14 (AAPM secondary display)

Ingress Protection

IP54 entire enclosure

Impact Protection

IK06

What's in the Box

Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick (E323104)
NA Power cable
EU Power cable
EEI Label
DICOM calibration sheet
2 x Cable cover screws
4 x VESA Screws (only for E380851 and E381048)
4 x rubbers (only for E380851 and E381048, affix to VESA holes)
