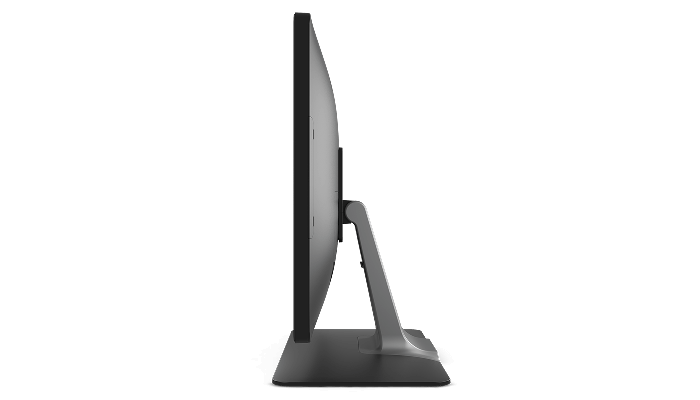

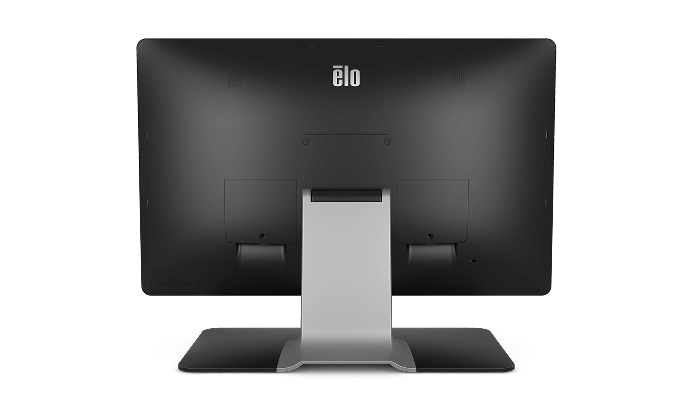

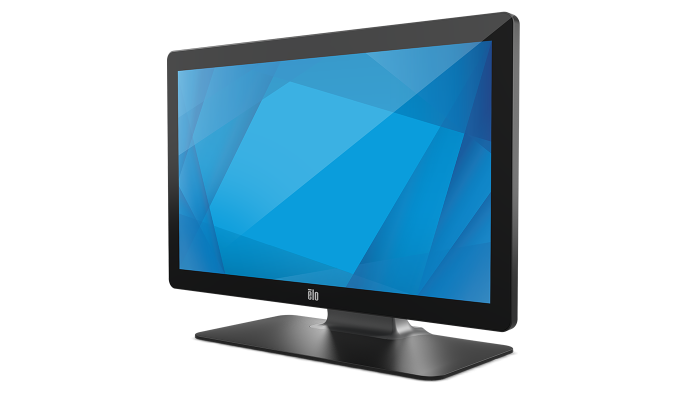

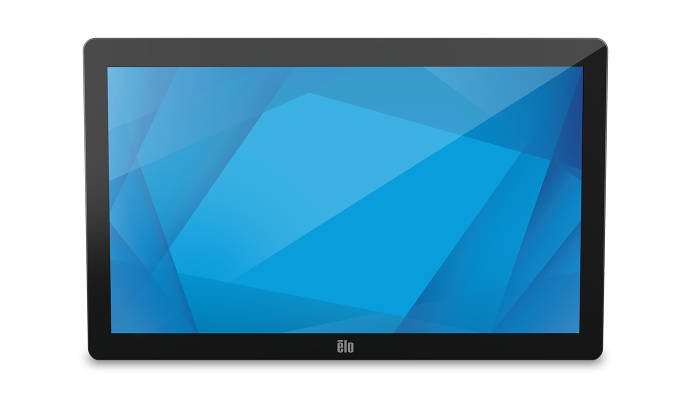

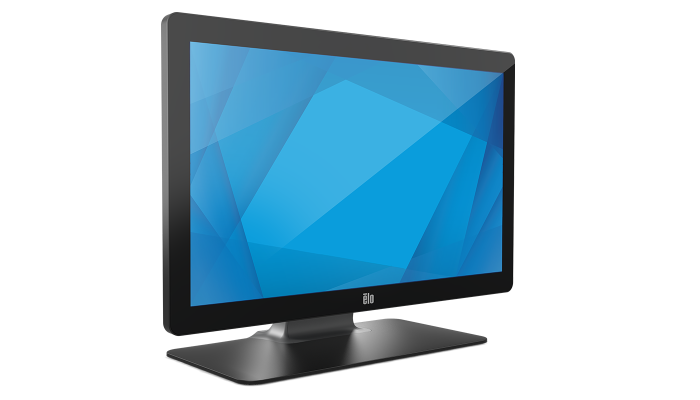

2202L 22″ Touchscreen Monitor

Clear with Stand - E351600
Clear without Stand - E126096
Anti-glare with Stand - E159758
Anti-glare without Stand - E992622

Black

PCAP (TouchPro® Projected Capacitive) - 10 Touch

21.5'' diagonal, Active matrix TFT LCD (LED)

16:9

18.74" x 10.54" / 476.06 mm x 267.79 mm

1920 x 1080 @ 50, 60Hz

640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD Panel: 250 nits
TouchPro PCAP: 225 nits

14 msec

1000:1

USB

Clear

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

Lockouts: OSD, Power

VGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB

Two x 2W internal speakers

VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)

Horizontal: 30 – 82KHz
Vertical: 50 - 75Hz

Monitor + AC/DC adapter
ON (Default - 80% Brightness): 14.80 W
ON (Typical - 100% Brightness): 16.78 W
SLEEP: 0.69 W
OFF: 0.28 W

12VDC +/- 5%
100-240VAC, 50/60Hz

Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

4x Micro USB side ports (Top, Bottom, Left, Right)

12.87" x 20.74" x 1.68" / 326.9 mm x 526.9 mm x 42.7 mm

15.11" x 20.74" x 7.61" / 383.8 mm x 526.9 mm x 193.4 mm

With Stand: 18.78" x 24.29" x 10.24" / 477 mm x 617 mm x 260 mm
Without Stand: 17.72" x 24.92" x 7.72" / 450 mm x 633 mm x 196 mm

With Stand: 14.88 lbs / 6.75 kg
Without Stand: 10.47 lbs / 4.75 kg

With Stand: 23.81 lbs / 10.8 kg
Without Stand: 15.87 lbs / 7.2 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Touchscreen sealed to bezel; Touchscreen sealed to LCD

50,000 hours demonstrated

VESA 4-hole 100mm mounting interface on rear of unit

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
India BIS
RoHS, China RoHS, WEEE, REACH

IPX1 - Front only

IK06

Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick
NA Power cable
EU Power cable
EEI Label
4 screws (for E126096, E992622)
