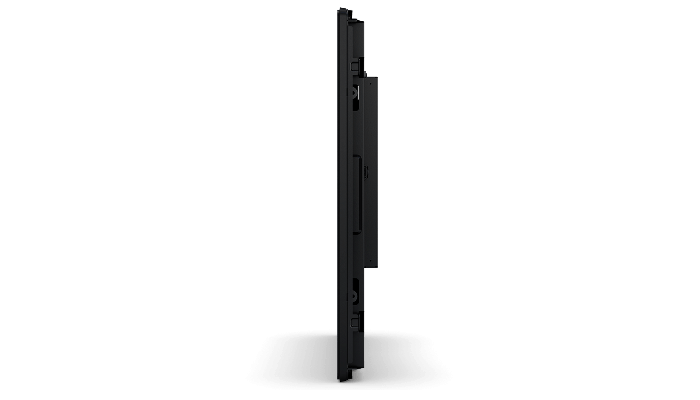

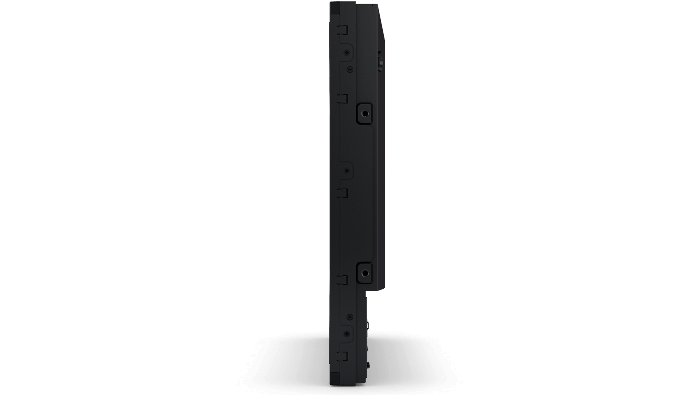

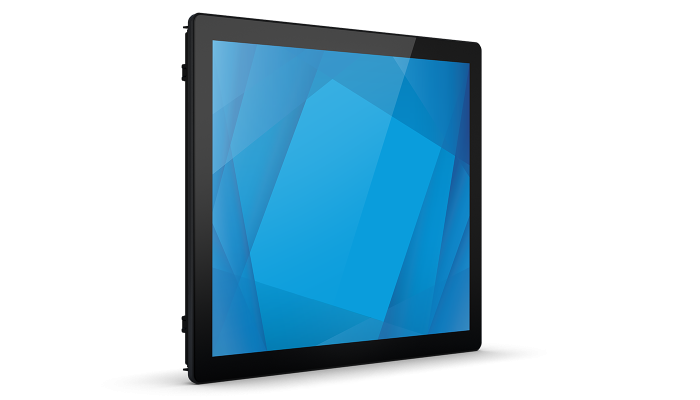

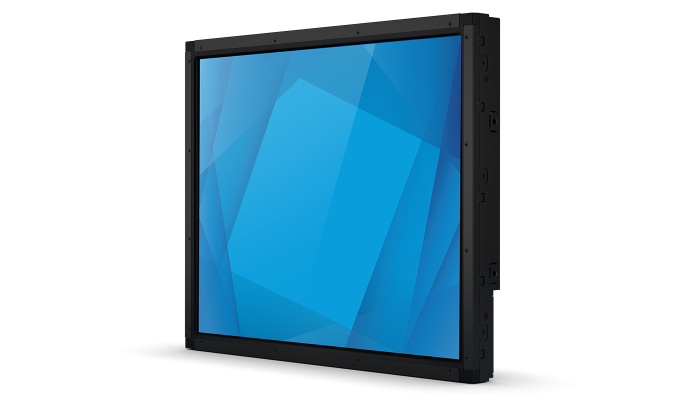

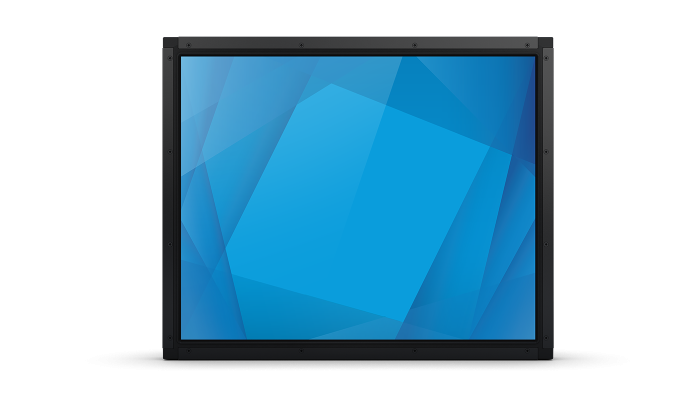

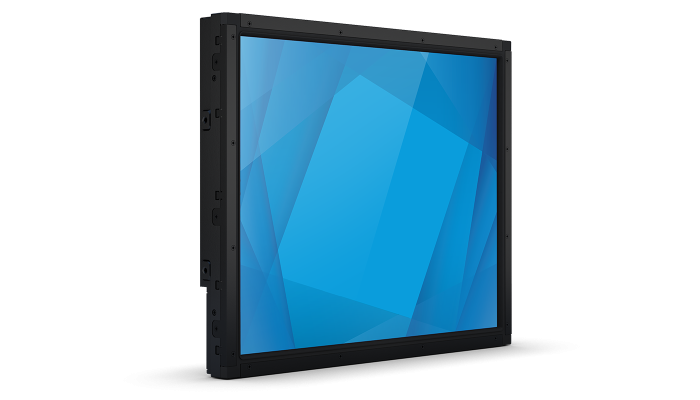

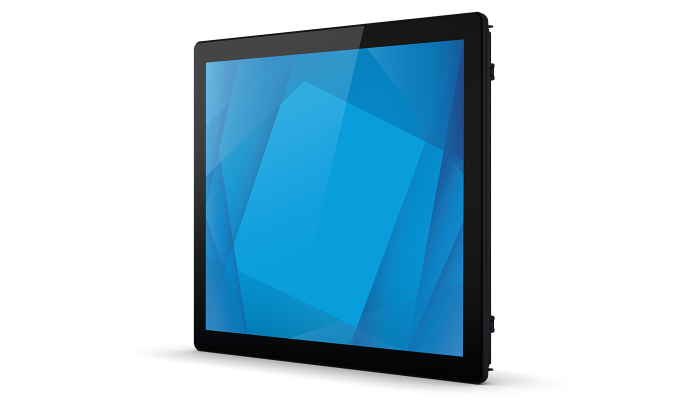

1990L 19″ Open Frame Touchscreen

IntelliTouch (Worldwide) - E328497
TouchPro PCAP (Worldwide) - E330817

Black

SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch

TouchPro PCAP - USB 2.0
IntelliTouch - Dual serial/USB 2.0

19'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

5:4

14.8" x 11.85" / 376.32mm x 301.06mm

1280 x 1024

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

16.7 million

LCD panel: 250 nits
IntelliTouch: 225 nits
TouchPro PCAP: 225 nits

5 msec

1000:1

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Horizontal: 30 - 60 KHz
Vertical: 50 - 75 Hz

HDMI, VGA & Display Port

External DC - Optional power brick (sold separately)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

12VDC +/- 5%

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

ON (Default - 75% Brightness): 10.52 W
ON (Typical - 100% Brightness): 11.78 W
SLEEP (monitor + adapter): 1.5W
OFF (monitor + adapter): 0.5W

Bezel: 16.33" x 13.50" x 1.97" / 414.7mm x 342.7mm x 50mm
Zero-Bezel: 16.54" x 13.70" x 1.60" / 420.1mm x 348.1mm x 40.7mm

20.71" x 17.72" x 6.85" / 526mm x 450mm x 174mm

10.14 lbs / 4.6 Kg

16.31 lbs / 7.4 Kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%
Storage: 10% to 95%

Touchscreen sealed to bezel
Touchscreen sealed to LCD

50,000 hours demonstrated

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEE

TouchPro PCAP Only
GLI 27 kV air / 8 kV contact ESD compliant
UL 62368 ball-drop compliant
IK07 impact compliant

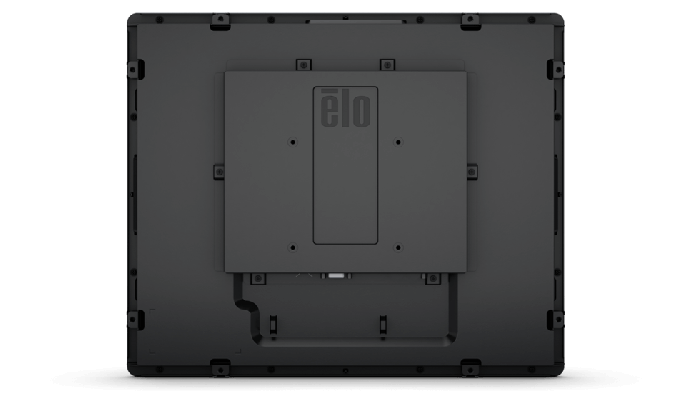

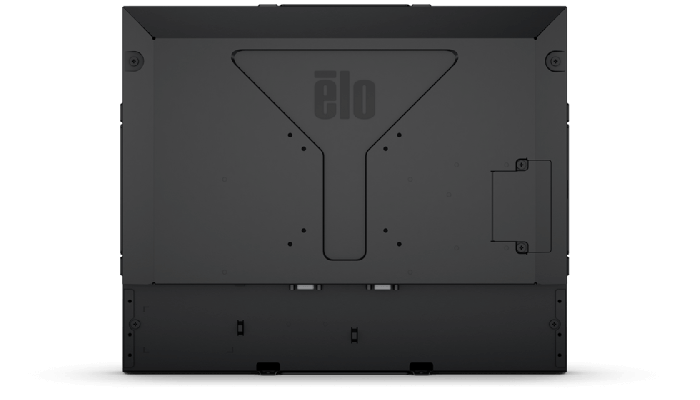

100 mm VESA mount (TouchPro PCAP Models see Part Numbers for details)
75 mm and 100mm VESA mount (IntelliTouch Models see Part Numbers for details)
Rear mount (TouchPro PCAP Models see Part Numbers for details)
2 Hole mounting interface on all four sides.
Front mount with optional bezel kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Rack mount with optional kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)

HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled: IT/ST/AT Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
