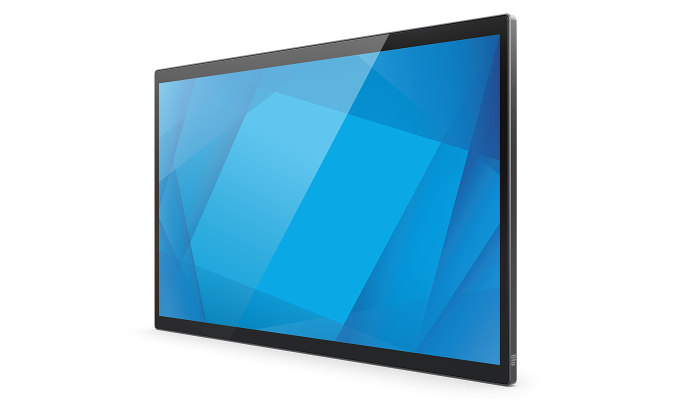

1504LS 15.6″ Touchscreen Monitor

E968313

Dark Gray Metallic

PCAP (Projected Capacitive) - 10 Touch

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55'' x 7.62'' / 344.16 mm x 193.59 mm

1920 x 1080

640x480 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.2 million

Panel: 350 nits
TouchPro PCAP: 315 nits

20 msec

1000:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

USB Type-C connector (for power, video and touch)

2 x 2W internal speakers

USB Type-C connector

Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Power Delivery compatible via USB Type-C connector

ON (Default - 100% Brightness): 8W
SLEEP: 0.8 W
OFF: 0.15 W

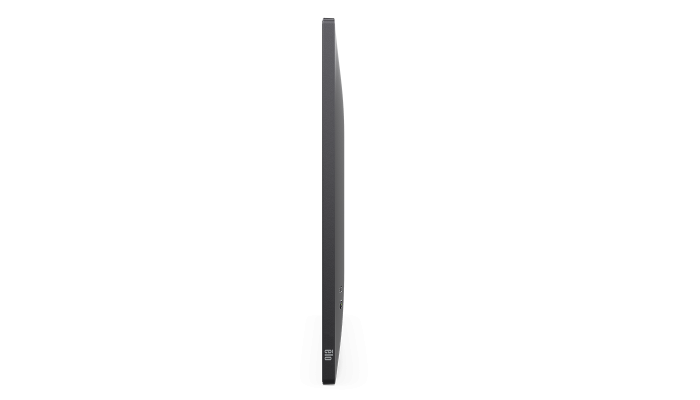

Without VESA Adapter: 14.16" x 8.61" x 0.59" / 359.73 mm x 218.82 mm x 14.97 mm
With VESA Adapter: 14.16" x 8.61" x 0.79" / 359.73 mm x 218.82 mm x 19.97 mm

17.01" x 3.66" x 11.61" / 432 mm x 93 mm x 295 mm

2.45 lbs / 1.11 kg

4.21 lbs / 1.91 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

50,000 hours demonstrated

VESA via 4-hole 75mm mounting adapter on rear of unit

Energy Star 8.0 TUV
Rhineland (Low Blue Light)
Power collection function via DDCCI

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Argentina AR certificate
Canada CUL, IC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
RoHS, China RoHS, WEEE, REACH
United Kingdom UKCA

IK07

Touchmonitor
Quick Install Guide
USB Type-C cable
75mm VESA adapter (assembled)
