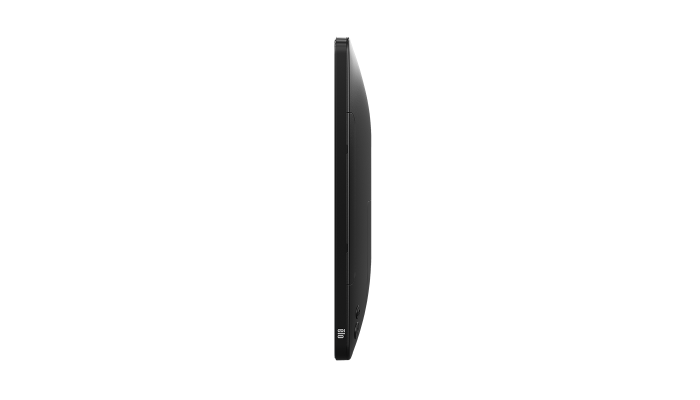

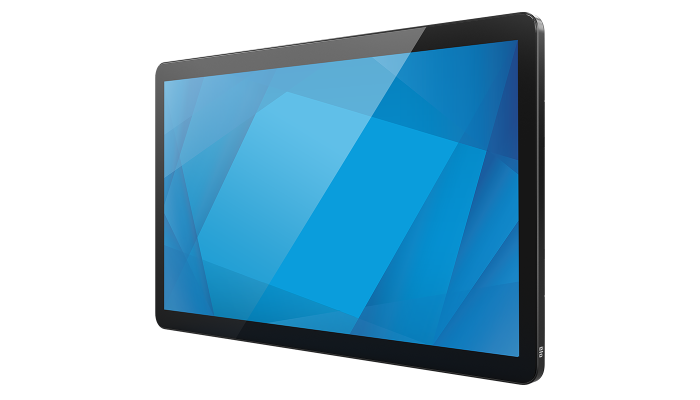

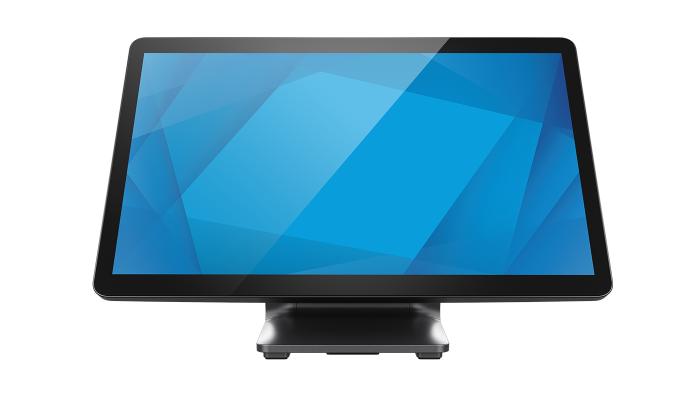

1504L 15.6″ Touchscreen Monitor

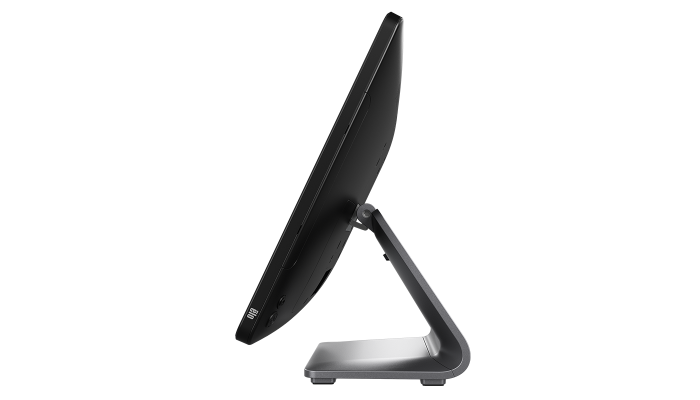

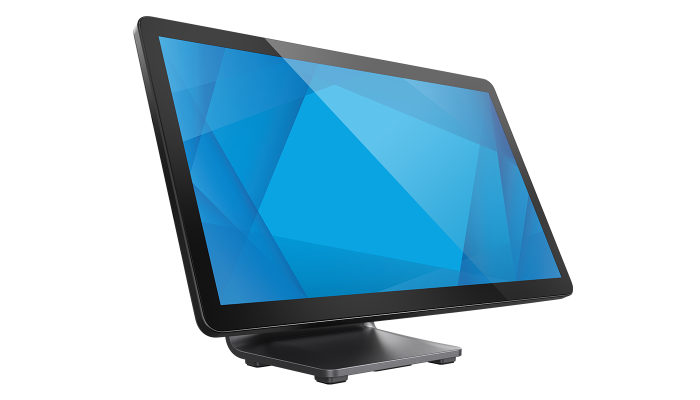

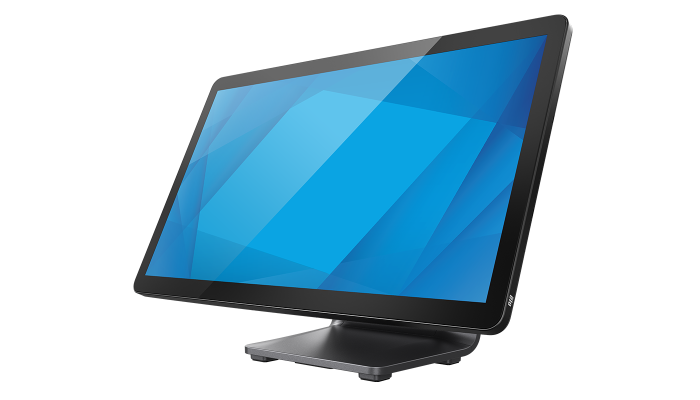

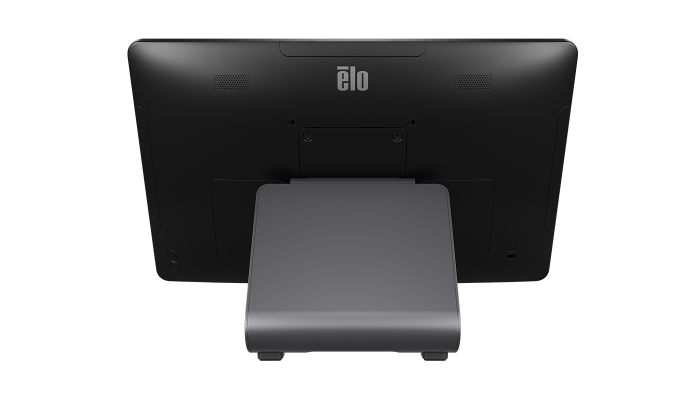

Stand - E969493

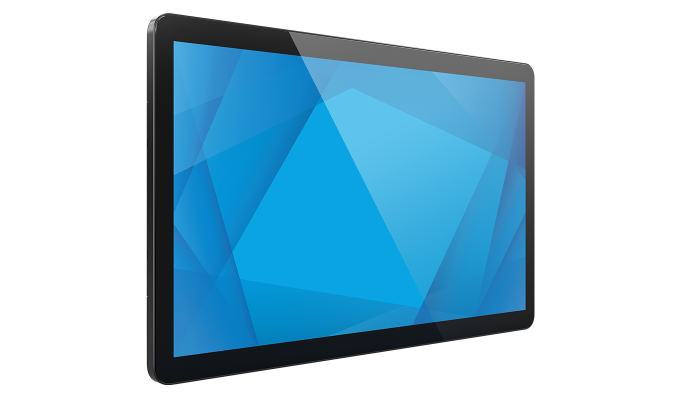

No Stand - E969292

Black

PCAP (Projected Capacitive) - 10 Touch

15.6'' diagonal, Active matrix TFT LCD (LED)

16:9

13.55" x 7.62" / 344.16 mm x 193.59 mm

1920 x 1080

640x480 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

16.7 million

LCD panel: 450 nits
PCAP: 405 nits

25 msec

1000:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

1x USB Type-C
1x USB Type-A
1x Displayport
1x HDMI
1x DC jack
4x Micro-USB Elo Edge Connect ports

2 x 2W (+/-10%) internal speakers

USB Type-C
Displayport
HDMI

Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Suggest using Elo USB Type C (Elo P/N: E129019) to prevent any compatibility issues

Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)

ON (Default - 70% Brightness): 12.1W
SLEEP: 1.0 W
OFF: 0.25 W

14.6" x 8.95" x 1.06" / 371 mm x 227.5 mm x 26.9 mm

With Stand: 17.76" x 13.46" x 8.66" / 451 mm x 342 mm x 220 mm
Without Stand: 17.64" x 6.34" x 11.81" / 448 mm x 161 mm x 300 mm

With Stand: 6.39 lbs / 2.9 kg
Without Stand: 3.74 lbs / 1.7 kg

With Stand: 12.33 lbs / 5.6 kg
Without Stand: 8.37 lbs / 3.8 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

50,000 hours demonstrated

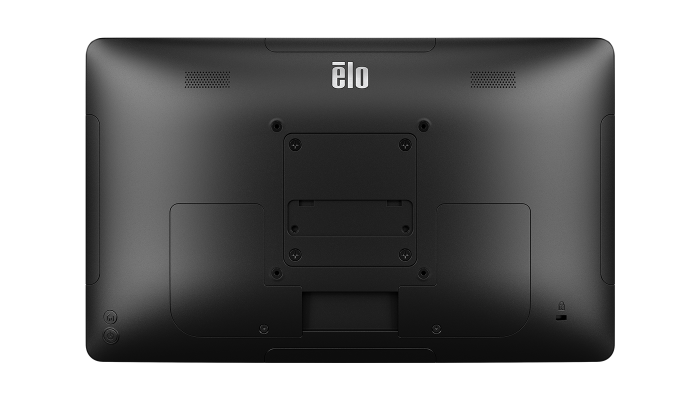

VESA 4-hole 75mm and 100mm mounting interface on rear of unit
See dimensional drawings for details.

Energy Star 8.0
TUV Rhineland (Low Blue Light)
Power collection function via DDCCI

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Argentina AR certificate
Canada cUL, IC
China CCC
Europe CE
Korea, KCC
Taiwan BSMI
United Kingdom UKCA
United States UL, FCC
Japan VCCI, PSE
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
India BIS

IP54

IK08

Touchmonitor
Quick Install Guide
EU EEI Label
2x UK EEI Label
1.8m HDMI cable
1.8 m USB cable (USB Type-A to Type-C)
Power brick
1.8m NA Power cable
1.8m EU Power cable
1x VESA FILLER (E969292 only)
4x M4XL15 (E969292 only)
4x M4XL8 (E969292 only)
2x Cable tie
