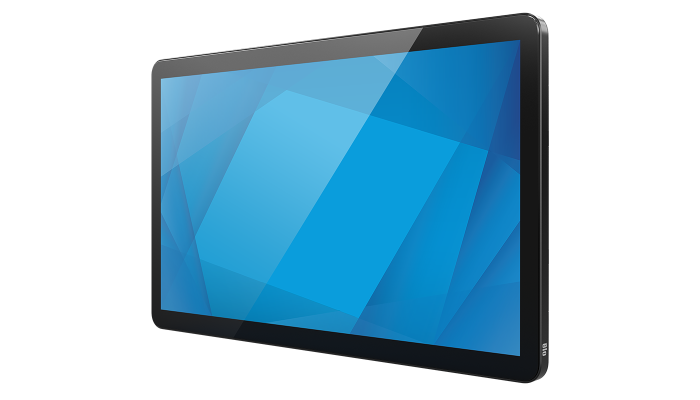

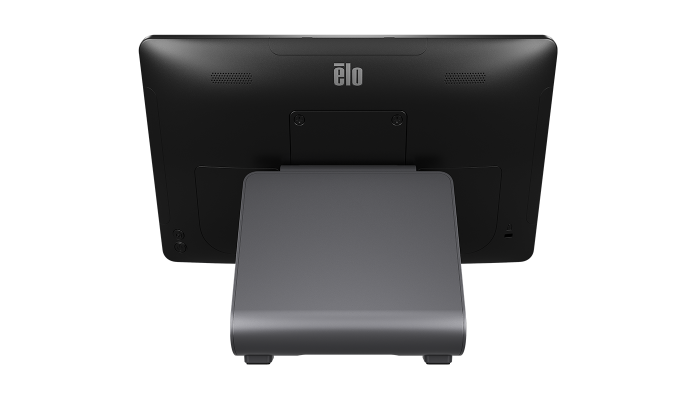

1304L 13″ Touchscreen Monitor

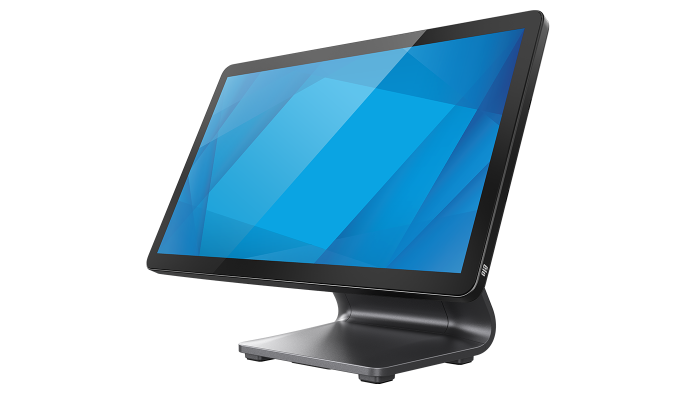

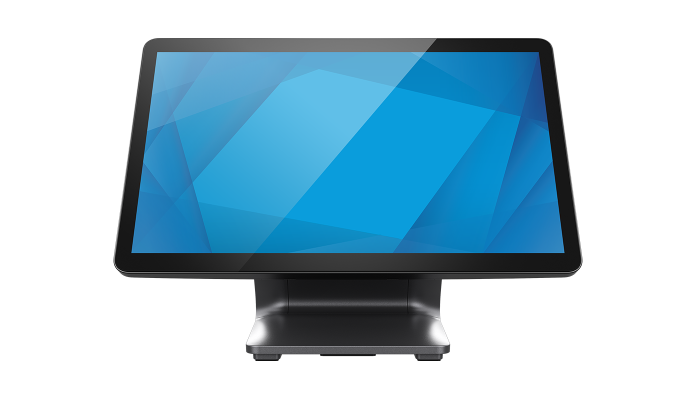

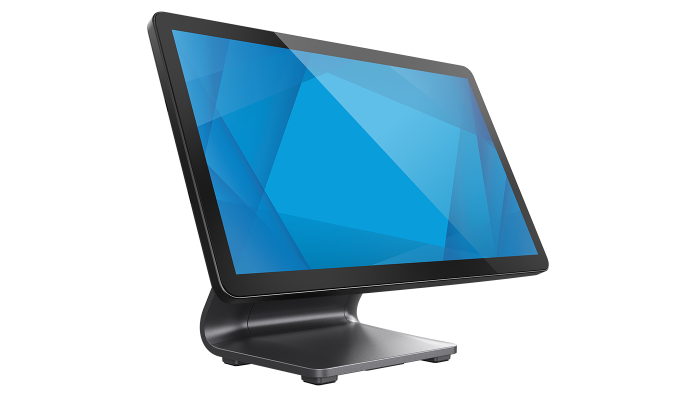

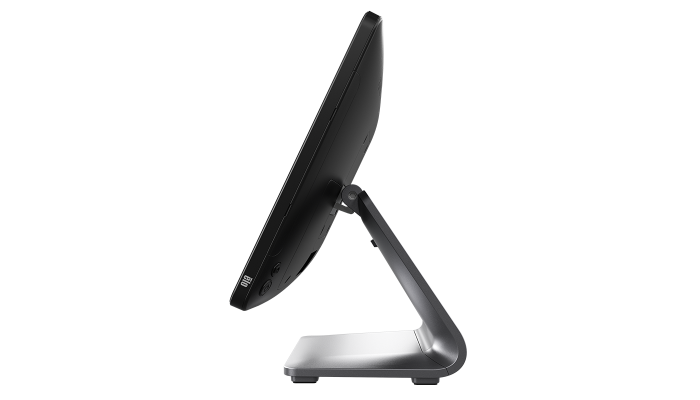

Stand - E969110

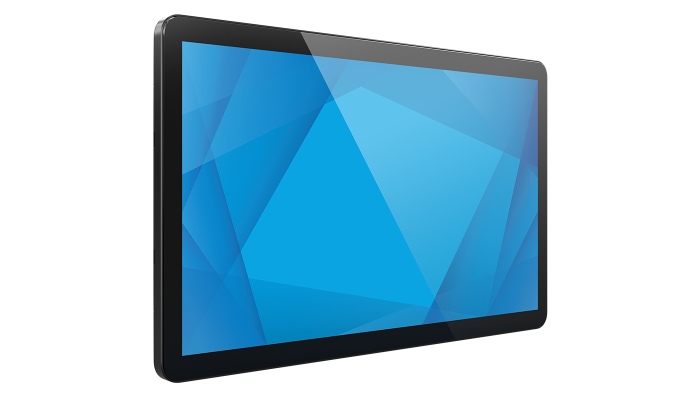

No Stand - E968908

Black

PCAP (Projected Capacitive) - 10 Touch

13.3'' diagonal, Active matrix TFT LCD

16:9

11.57" x 6.51" / 293.76 mm x 165.24 mm

1920 x 1080

640x480 60Hz
800x500 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.2 million

LCD panel: 300 nits
PCAP: 270 nits

27 msec

600:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

1x USB Type-C
1x USB Type-A
1x Displayport
1x HDMI
1x DC jack
4x Micro-USB Elo Edge Connect ports

2 x 2W (+/-10%) internal speakers

USB Type-C
Displayport
HDMI

Input Video Horizontal Sync frequency range: 30 – 80KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Suggest using Elo USB Type C (Elo P/N: E129019) to prevent any compatibility issues

Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)

ON (Default Brightness): 6.5W
SLEEP: 1.0 W
OFF: 0.25 W

12.56" x 7.67" x 1.02" / 318.9 mm x 194.9 mm x 25.8 mm

Without Stand: 15.67" x 6.34" x 10.94" / 398 mm x 161 mm x 278 mm
With Stand: 16.06" x 12.72" x 8.39" / 408 mm x 323 mm x 213 mm

Without Stand: 2.64 lbs / 1.2 kg
With Stand: 5.28 lbs / 2.4 kg

Without Stand: 6.82 lbs / 3.1 kg
With Stand: 10.78 lbs / 4.9 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

50,000 hours demonstrated

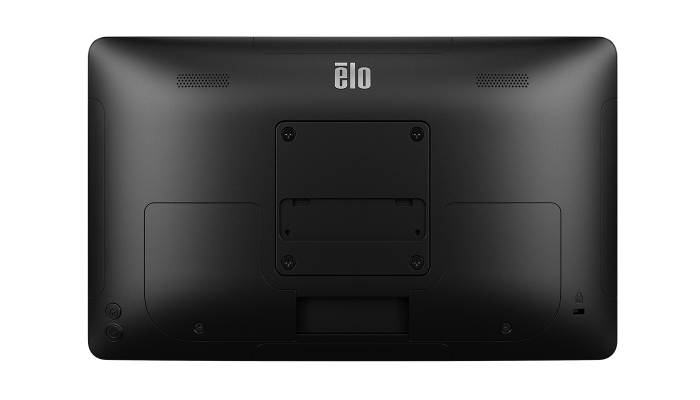

75mm X 75mm rear-mount mounting interface
See dimensional drawings for details.

Energy Star 8.0
TUV Rhineland (Low Blue Light)
Power collection function via DDCCI
PD (power delivery) out via USB-C (18W Max) for Elo Pay 7"

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Argentina AR certificate
Canada cUL, IC
China CCC
Europe CE
Korea, KCC
Taiwan BSMI
United Kingdom UKCA
United States UL, FCC
Japan VCCI, PSE
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
India BIS

IP54

IK08

Touchmonitor
Quick Install Guide
EU EEI Label
2x UK EEI Label
1.8m HDMI cable
1.8 m USB cable (USB Type-A to Type-C)
Power brick
1.8m NA Power cable
1.8m EU Power cable
1x VESA filler (E968908 only)
4x Pan Head Screw M4x15 (E968908 only)
2x Cable tie
