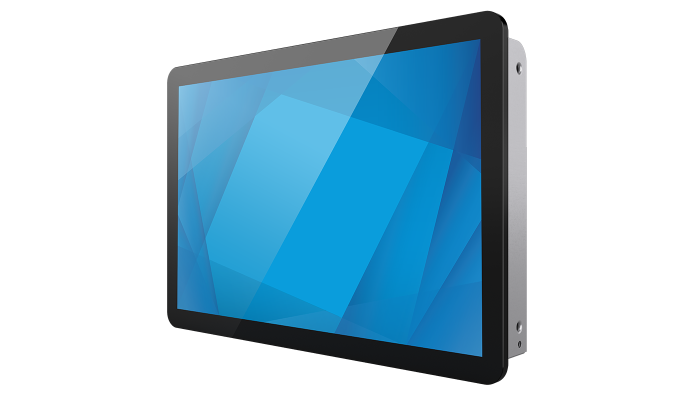

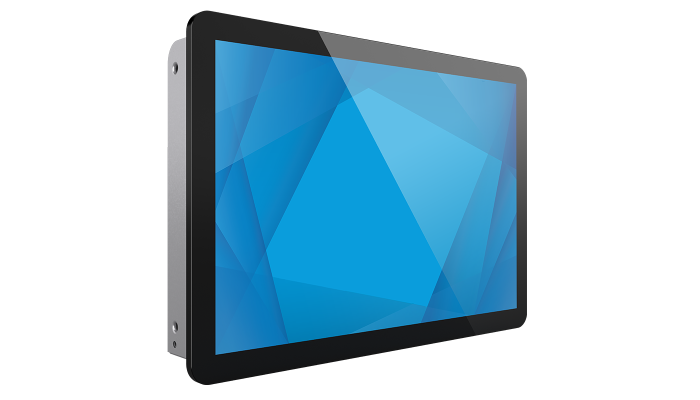

1099L 10″ Outdoor Open Frame Touchscreen

TouchPro PCAP with anti-glare - E354792

Black

PCAP (TouchPro® Projected Capacitive) - up to 5 touches

USB 2.0

10.1'' diagonal, Active matrix TFT LCD (LED)

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

16:9

8.54" x 5.33" / 216.96 mm x 135.60 mm

1280 x 800 at 60Hz

640 x 480 60Hz
720 x 400 70Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 800 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.7 million

TouchPro PCAP: 1000 nits

25 msec

800:1

Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DE-15 (DB-15) connector
DisplayPort V1.1a - Supports later versions of DisplayPort video input

Input Video Horizontal Sync frequency range: 31.5 – 80K KHz

Input Video Vertical Sync (frame rate) frequency range: 60-75Hz

Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth)

Monitor input voltage range: 12V to 24V DC +/- 5%

Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length)

Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz

Monitor + adapter
ON: 23W
SLEEP from PC: 1.5W
OFF: 1.5W

10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm

13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm

4.85 lbs / 2.2 kg

7.28 lbs / 3.3 kg

-20°C to 60°C / -4°F to 140°F

-30°C to 80°C / -22°F to 176°F

Operating: 10% to 90%
Storage: 10% to 95% (38.7° maximum wet bulb temperature)

Sealable to IP66 / NEMA 4x

50,000 hours demonstrated

2 years

Australia RCM
Canada cUL, IC
China CCC
Europe CE, TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NoM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE

GLI 27 kV air / 8 kV contact ESD compliance
UL ball-drop compliance
IK09 impact compliance

200x100mm VESA mount on rear of unit

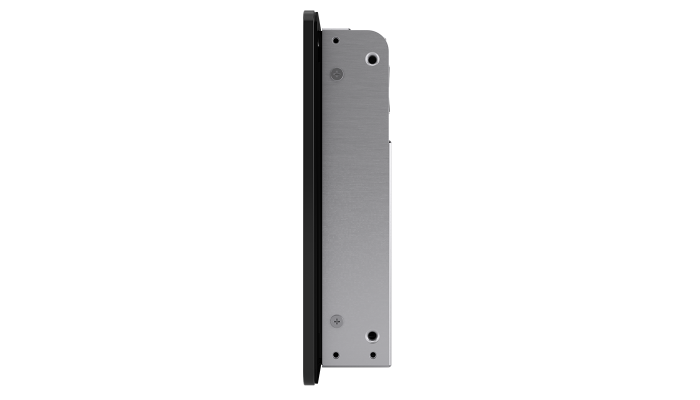

4 Hole mounting interface on all four sides.

Flush mount with included brackets

Viewable with polarized sunglasses in portrait and landscape orientations.
Ambient light sensor
Thermal sensor

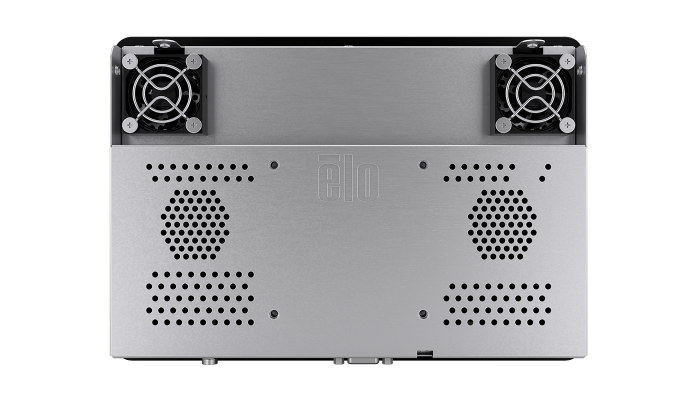

External fans (Automatically controlled)

1099L
HDMI cable with screw-locked type
VGA Cable
Remote OSD
Touch USB Cable with screw-locked type
Quick Install Guide
Flush Mount Brackets w/Screws
EEI Label
