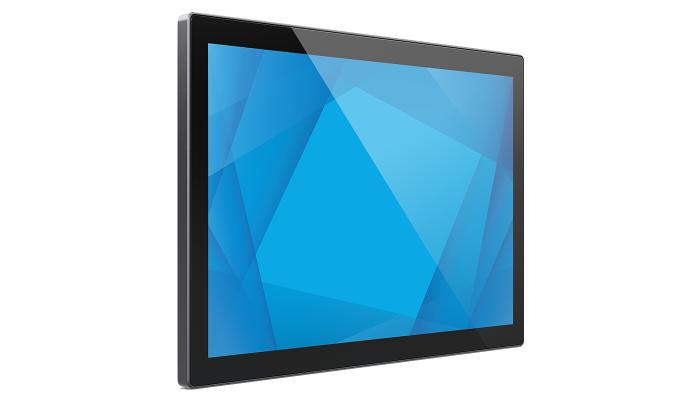

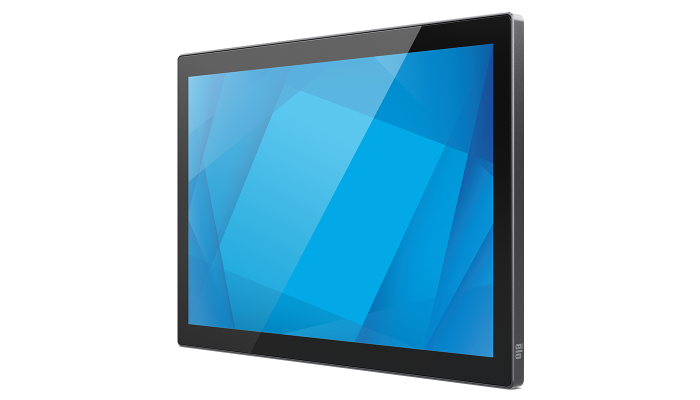

1004LS 10″ Touchscreen Monitor

E967935

Dark Gray Metallic

PCAP (Projected Capacitive) - 10 Touch

10.1'' diagonal, Active matrix TFT LCD (LED)

16:10

8.54" x 5.34" / 216.96 mm x 135.60 mm

1280 x 800

1280 x 800 60Hz
1280 x 800 60Hz RB
1280 x 720 60hz
1024 x 768 60Hz
800 x 600 60Hz
800 x 500 60Hz
640 x 480 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.7 million

Panel: 400 nits;
TouchPro PCAP: 360 nits

30 msec

800:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

USB Type-C connector

2 x 2W internal speakers

USB Type-C connector

Input Video Horizontal Sync frequency range: 30 – 60KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Power Delivery compatible via USB Type-C connector

ON (Default - 100% Brightness): 6.6W
SLEEP: 0.8 W
OFF: 0.15 W

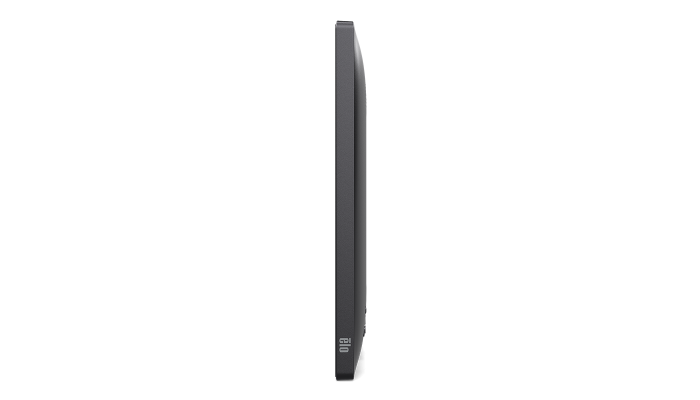

Without VESA Adapter: 9.45" x 6.42" x 0.59" / 239.94 mm x 163 mm x 15 mm
With VESA Adapter: 9.45" x 6.42" x 0.79" / 239.94 mm x 163 mm x 20 mm

12.28" x 8.74" x 3.03" / 312 mm x 222 mm x 77 mm

1.32 lbs / 0.6 kg

2.45 lbs / 1.11kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

50,000 hours demonstrated

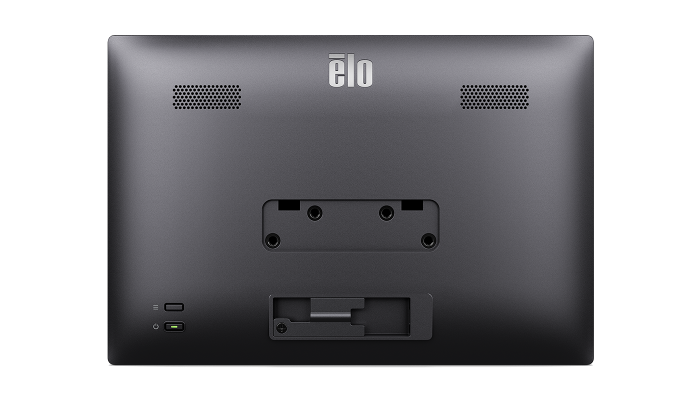

VESA via 4-hole 75mm mounting adapter on rear of unit

TUV Rhineland (Low Blue Light)
Power collection function via DDCCI

3 years

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Canada CUL, IC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
United Kingdom UKCA

IK07

Touchmonitor
Quick Install Guide
USB Type-C cable
75mm VESA adapter (assembled)
