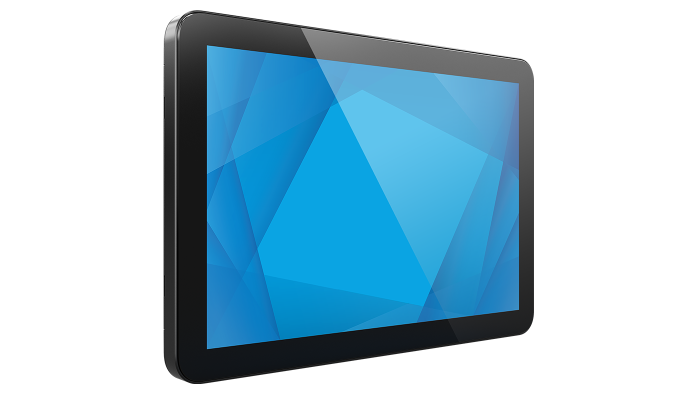

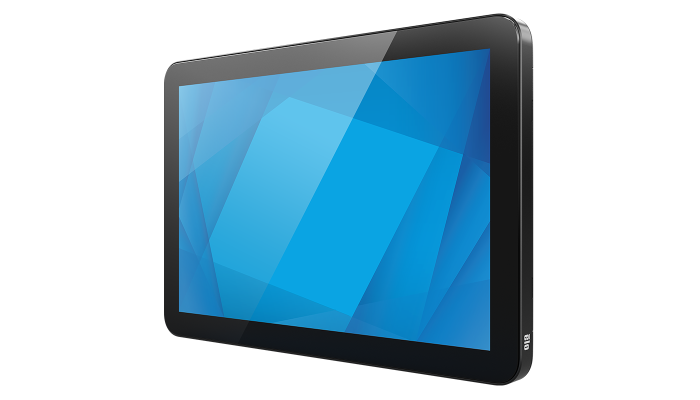

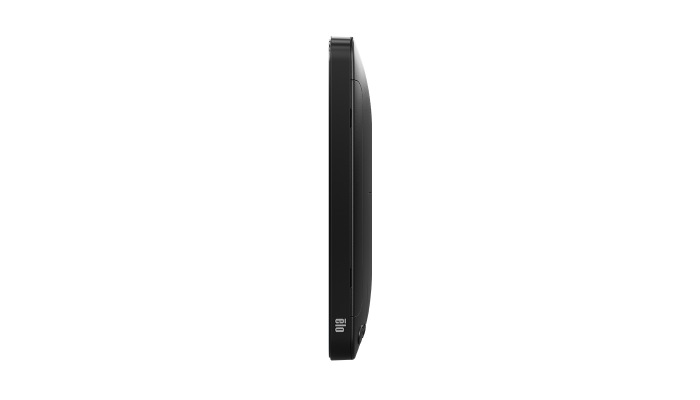

1004L 10″ Touchscreen Monitor

PCAP - E968703
Non-Touch - E315290

Black

Non-Touch
PCAP (Projected Capacitive) - 10 Touch

10.1'' diagonal, Active matrix TFT LCD (LED)

16:10

8.54" x 5.34" / 216.96 mm x 135.6 mm

1280 x 800

640x480 60Hz
800x500 60Hz
800x600 60Hz
1024x768 60Hz
1280x720 60Hz
1280x800 60Hz, 60Hz RB
1920x1080 60Hz
1920x1200 60Hz

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

16.7M

LCD panel: 400 nits
PCAP: 360 nits

30 msec

800:1

USB

Anti-glare

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls (Touch Model): Menu, Power
Controls (Non-touch Model): Two keys (one power key + 5 directional key)

Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

1x USB Type-C
1x Mini-Displayport
1x HDMI
1x DC jack
4x Micro-USB Elo Edge Connect ports

2 x 2W (+/-10%) internal speakers

USB Type-C
Mini-Displayport
HDMI

Input Video Horizontal Sync frequency range: 30 – 80KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Suggest using Elo USB Type C (Elo P/N: E129019) to prevent any compatibility issues

Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)

ON (Default - 100% Brightness): 6.5W
SLEEP (Touch Model): 1.0 W
SLEEP (Non-touch Model): 0.5 W
OFF: 0.25 W

9.80" x 6.61" x 0.98" / 249 mm x 168 mm x 25 mm

Unpackaged: With Stand: 6.72 lbs / 3.05 kg; Without Stand: 3.62 lbs / 1.64 kg; Packaged: With Stand:11.05 lbs / 5.01 kg; Without Stand: 7.47 lbs / 3.39 kg

12.13" x 5.63" x 8.78" / 308 mm x 143 mm x 223 mm

1.98 lbs / 0.90 kg

4.84 lbs / 2.2 kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

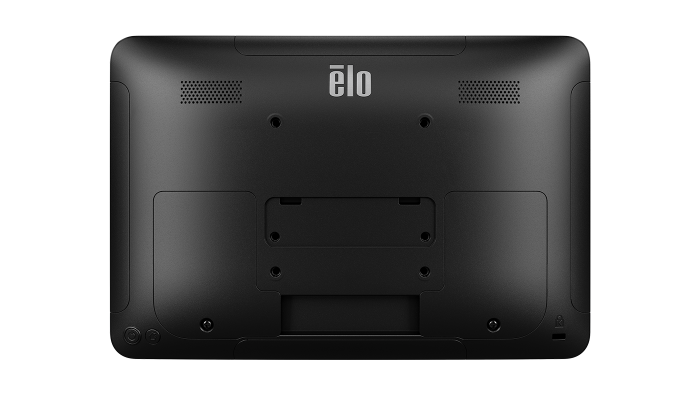

75mm X 75mm rear-mount mounting interface
See dimensional drawings for details.

50,000 hours demonstrated

TUV Rhineland (Low Blue Light)
Power collection function via DDCCI
PD (power delivery) out via USB-C (18W Max) for 7” pay

Argentina AR certificate
Canada cUL, IC
China CCC
Europe CE
Korea, KCC
Taiwan BSMI
United Kingdom UKCA
United States UL, FCC
Japan VCCI, PSE
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
India BIS

IP54

IK07

3 years standard

Touchmonitor
Quick Install Guide
EU EEI Label
2x UK EEI Label
1.8m HDMI cable
1.8m USB-A to C cable
Power brick
1.8m NA Power cable
1.8m EU Power cable
2x Cable tie
