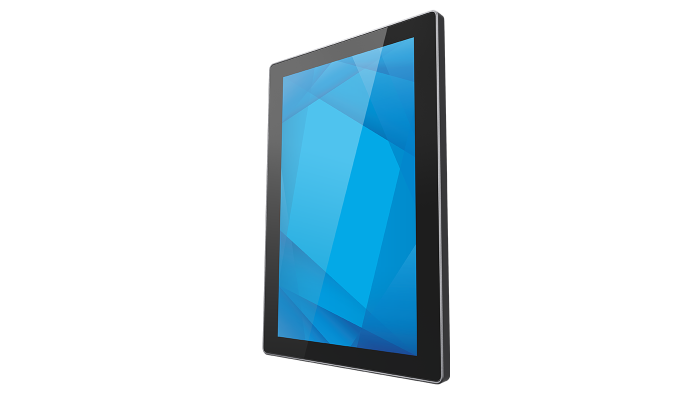

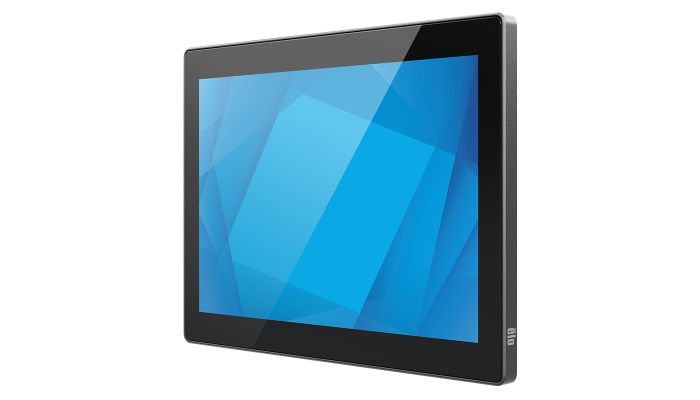

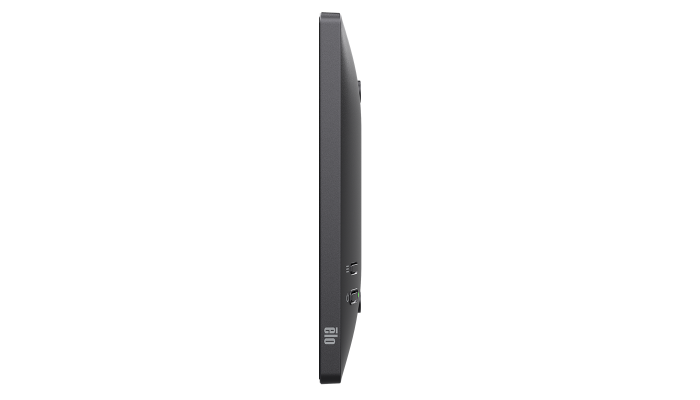

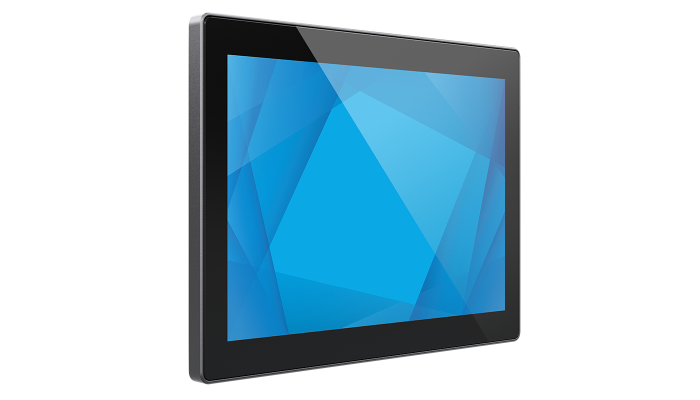

Built to be one of the thinnest commercial-grade 7-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the-art optical bonding – all with brilliant display clarity.
|
Part Number |
E967730 |
|
Enclosure Color |
Dark Gray Metallic |
|
Touch Technology & Capacity |
PCAP (Projected Capacitive) - 10 Touch |
|
Diagonal Size |
7'' diagonal, Active matrix TFT LCD (LED) |
|
Aspect Ratio |
16:10 |
|
Active Area |
5.90" x 3.69" / 149.76 mm x 93.60 mm |
|
Resolution |
1280 x 800 |
|
Viewing Angle |
Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total |
|
Number of Colors |
16.7 million |
|
Brightness |
Panel: 400 nits; TouchPro PCAP: 360 nits |
|
Response Time-total (typical) |
35 msec |
|
Contrast Ratio |
800:1 |
|
Touch Interfaces |
USB |
|
Surface Treatment |
Anti-glare |
|
On Screen Display |
Accessible through touch OSD, and press Menu button to pop up touch OSD diagram. |
|
I/O Ports |
USB Type-C connector |
|
Video |
Input Video Horizontal Sync frequency range: 30 – 60KHz |
|
Power |
Power Delivery compatible via USB Type-C connector |
|
Power Consumption (Typical) |
ON (Default - 100% Brightness): 4.8W |
|
Monitor Dimensions (without Stand) |
6.81" x 4.78" x 0.57" / 173.06 mm x 121.56 mm x 14.6 mm |
|
Shipping Box Dimensions |
9.13" x 6.61" x 2.80" / 232 mm x 168 mm x 71mm |
|
Weight (Unpackaged) |
0.71 lbs / 0.32 kg |
|
Weight (Packaged) |
1.48 lbs / 0.67 kg |
|
Operating Temperature |
0°C to 40°C / 32°F to 104°F |
|
Storage Temperature |
-20°C to 60°C / -4°F to 140°F |
|
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature) |
|
MTBF |
50,000 hours demonstrated |
|
Mounting Options |

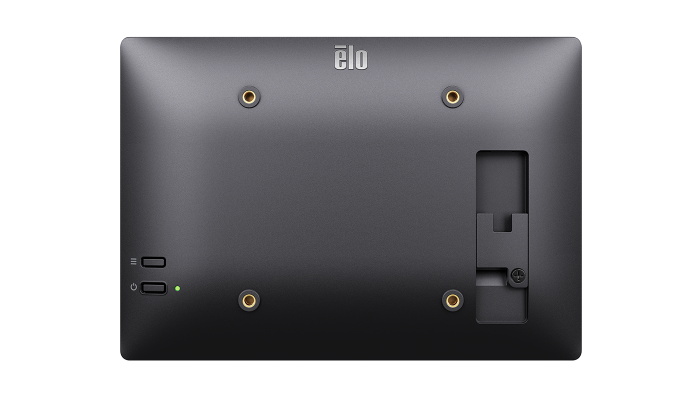

VESA via 4-hole 75mm mounting adapter on rear of unit. |
|
Other Features |
TUV Rhineland (Low Blue Light) |
|
Warranty |
3-year |
|
Regulatory approvals and declarations |
Canada CUL, IC |
|
Impact Protection |
IK07 |
|
What's in the Box |
Touchmonitor |
