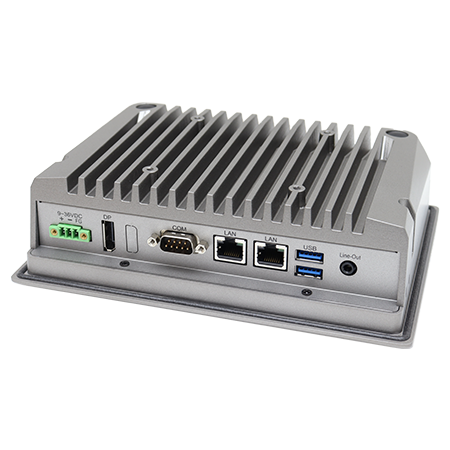

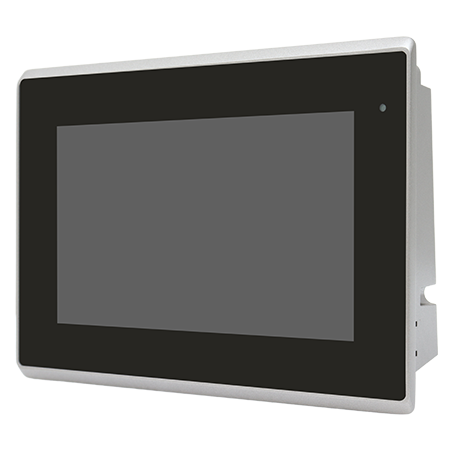

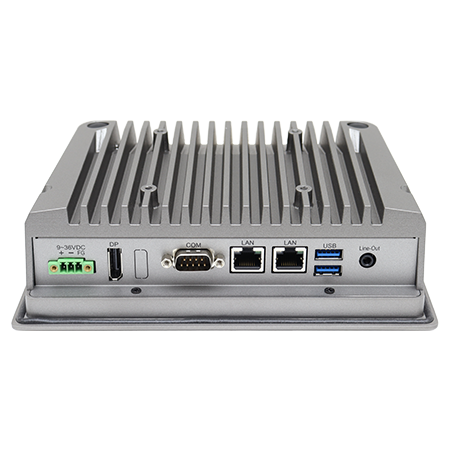

SKU ARCHMI-807A/P Category

ARCHMI-807A/P - 7" HMI

APLEX PC Based New Generation Low Power Consumption HMI/Innovationg Fast, Bay Trail Solution

  • 7″ TFT-LCD Resistive Touch Window.
  • Intel Celeron N2930(1.83GHz)CPU built-in/Atom E3845(1.91GHz)for option.
  • Onboard 4GB DDR3L 1333 MHz/8GB(option).
  • Aluminum Die-Casting Chassis Fanless Design.
  • Easily Accessible Storage Design
  • Flat Front Panel Design Meets IP66 Standard

    APLEX PC Based New Generation Low Power Consumption HMI/Innovationg Fast, Bay Trail Solution7" TFT-LCD Resistive Touch Window. Intel Celeron N2930(1.83GHz)CPU built-in/Atom E3845(1.91GHz)for option. Onboard 4GB DDR3L 1333 MHz/8GB(option). Aluminum Die-Casting Chassis Fanless Design. Easily Accessible Storage Design Flat Front Panel Design Meets IP66 Standard

    • Model
      ARCHMI-807
    • CPU
      Onboard Intel Celeron N2930(1.83GHz) Processor/Atom; E3845(1.91GHz) for option
    • System Chipset
      SoC
    • System Memory
      Onboard 4GB DDR3L 1333 MHz/8GB(option)
    • Power Consumption
      MAX:14.1W
    • USB
      2 x USB 3.0 type A
    • Serial / Parallel
      1 x RS-232 DB-9(COM2) 1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
    • Audio
      1 x Phone Jack Line-out
    • LAN
      2 x GbE RJ-45
    • Power
      3 Pins Terminal Block Connector DC Power Input, 1 x 2-Pin DC Power Switch Connector
    • HDD/SSD
      1 x SATA MO-297 SSD bay (Easy Accessible)
    • Others
      1 x SD card slot, up to 32GB
    • On board expansion bus
      1 x Internal Mini-PCIe slot full size
    • LCD Size
      7" TFT-LCD
    • Max. resolution
      800 x 480
    • Max. color
      262K
    • Luminance(cd/m²)
      350
    • Viewangle(H°/V°)
      140/110
    • Backlight lifetime(hrs)
      40000
    • Touch Type
      Resistive Touch Window / PCAP
    • Interface
      USB
    • Light transmission(%)
      80%
    • Power input
      9~36V DC
    • Construction
      Aluminum Die-casting Front Bezel and Chassis
    • IP rating
      Front Bezel IP66
    • Mounting
      Panel mounting, VESA 75 x 75
    • Dimension(mm)
      202 x 149 x 40
    • Net weight(Kgs)
      1.2
    • Operating temperature(°C)
      0~50°C
    • Storage temperature(°C)
      -20~60°C
    • Storage humidity
      10 to 90% @ 40°C, non- condensing
    • Certification
      CE/FCC class A/UL
